10 Port Full Gigabit PoE+ Switch with Rack Mount Ears, 8 Port PoE 1000Mbps, 2x1000Mbps Uplink, Up to 30W Per Port, 120W, 48 Volt 802.3af/at Compliant, Compatible with PoE IP Cameras VOIP Phones

Product description

FAQs

Q: The ports on the switch is 100mbps instead of 1000mbit.

A: We have both 100mbps and gigabit for 4/8/16/24 port poe switch, please choose the right one you need.

Q: What kind of cameras can be connected to the POE switch?

A: All POE cameras that support IEEE 802.3AF/AT can be supported. If it is not a POE camera, a POE splitter can be added to connect the switch and the camera.

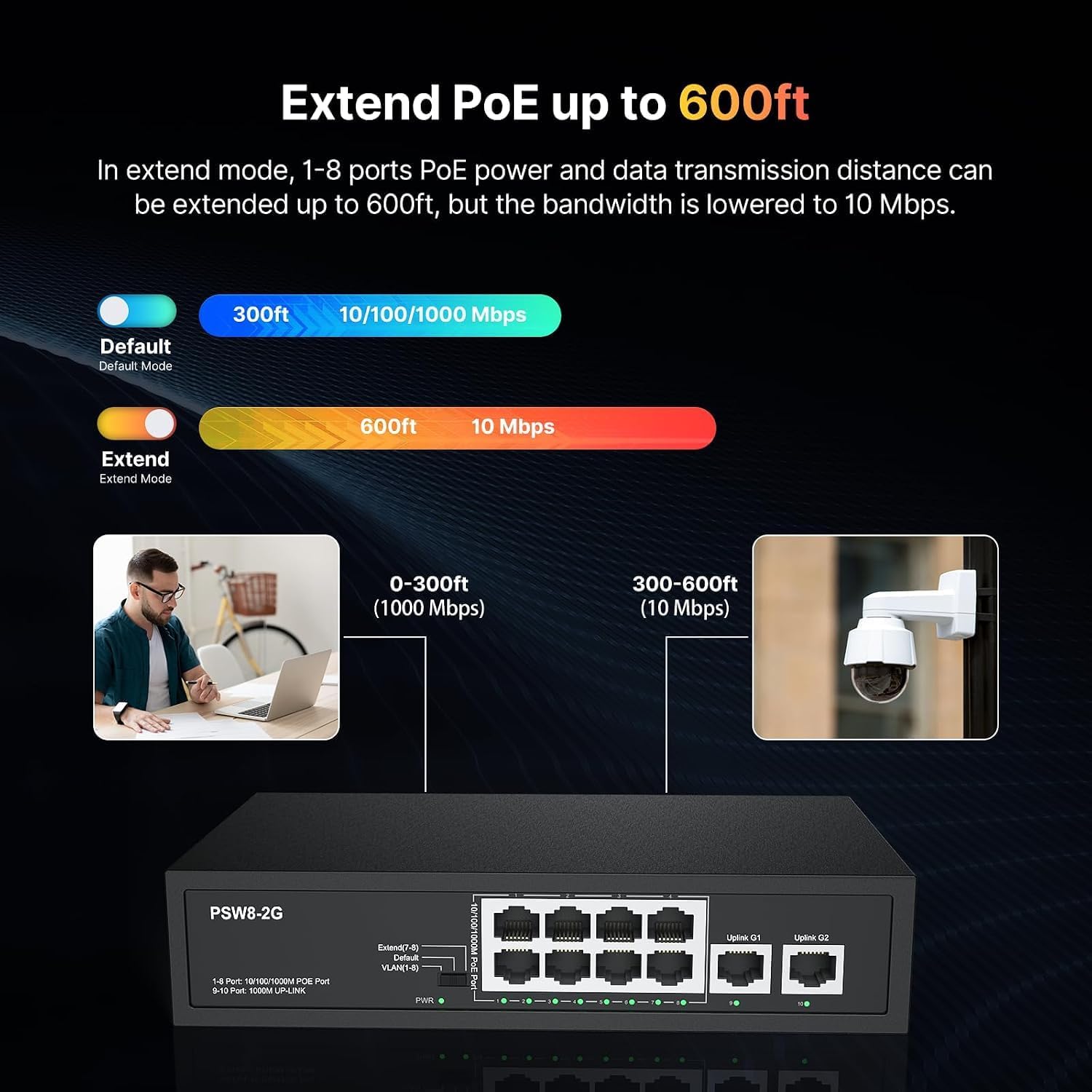

Q: What situation is suitable for extend mode?

A: The extend mode can be turned on when the distance exceeds 100 meters. The image transmission to be stuck because of camera signal is interfered or signal is not enough, it can be turned on.

Q: The distance is 50 meters, camera is normal during the day, but there is no image at night.

A: Insufficient power supply. Please make sure that the network cable that meets the international standard or above. It is recommended to use a multimeter to test cable resistance.

Note: RealHD active POE switchs support passive & non poe devices, but when the switch is directly connected to passive poe devices or non-poe devices, the switch can only transmit data and cannot power the device, so the device needs to be powered separately. Or use an active poe splitter between the switch and your passive poe or non-poe device, in this time switch can transmit data and power at the same time.

RealHD CCTV wholesaler provide a various of cctv products, for monitor please search for Asin B09T269QB4, and NVR search for B0B5S8RNCF

Technical Specification

Port 8×10/100/1000M PoE Ports and 2 Uplink Ports PoE Protocol IEEE 802.3af/at Network Port IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af/at DTE Power via MDI; IEEE 802.3af/at PoE Port Power 30W for each（120Wfor total) Transmission Distance 100m support Bandwidth 20Gbps (non-blocking) MAC adress 2K Net Weight 0.92kg Fan Fanless Working Environment Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing Power Supply Power input: AC100-240V 50/60Hz Product Dimension (L*W*H):22cm*16cm*3.5cm

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 40

4.7 out of 5 stars 138

4.5 out of 5 stars 65

4.2 out of 5 stars 40

4.2 out of 5 stars 59

4.4 out of 5 stars 51

Price

$22.99$22.99 $65.99$65.99 $84.99$84.99 $147.35$147.35
— no data

— no data

PoE Port
8×10/100Mbps 16×10/100Mbps 24×10/100Mbps 24×100/1000Mbps 4×10/100Mbps 4×100/1000Mbps

UpLink Port
2×100/1000Mbps 2×100/1000Mbps 2×100/1000Mbps 1x SFP 2x1000Mbps SFP 2×100/1000Mbps 2×100/1000Mbps 1xSFP

Extend function
YES YES YES YES YES YES

PoE Power Output
120W 300W 300W 300W 65W 65W

Case Material
Metal Metal Metal Metal Metal Metal

8 Gigabit PoE Ports and 2 Gigabit Ethernet Uplink Ports at 10/100/1000Mbps each, making network setups easier and more convenient.
HIGH PERFORMANCE:Working with IEEE 802.3af/at Network protocol standard,supports PoE power up to 30W for each PoE port(Total of 120W PoE power budget).Compact & Sturdy Metal Housing design makes it safe to use in various environments.
STANDARD POWER OVER ETHERNET SWITCH:PD Detection,Automatically detect and provide required power for your PoE devices and protect your non-PoE equipment from being damaged.
MORE FEATURES: Plug & Play, simple set up with no software or configuration needed. Built-in power adapter for easy installation,ideal for office and home’s networks.And LED indicators for PoE power and link/activity for ease of use
Note: Do not support passive 24V PoE device E.g. ubiquiti access point
