24 Port Gigabit PoE Switch,AUMOX PRO 28 Port PoE with 2 x Uplink Gigabit Ports, 2 x 1G SFP Slots 400W SG528P ,Plug and Play,Metal Case Desktop, Wall Mount or Rackmount Network Switch,802.3af/at

Product description

For Surveillance

Works with IP Cameras.

For Conference Call

Works with IP Phones.

Wi-Fi Coverage

Works with access points, perfect solution for hotels, restaurants, etc.

For Business Office

Works with PCs and Printers.

Technical Details

Model SG528P [ 28 Port| 24 PoE+2 Uplink+2 SFP 400W ] PoE Port 24×10/100/1000Mbps Uplink Port 2×10/100/1000Mbps SFP Slot 2×10/100/1000Mbps Power AC: 110-240V~50/60Hz DC: 52V/4.5A（Power Adapter Output） Standards IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab Interface 26*10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Support IEEE 802.3x full duplex and Backpressure half duplex Switching Capacity 56 Gbps PoE Supply 1. Port 1 to Port 24 support standard IEEE802.3at/af. 2. Power(maximum power for each port is 30W) 3. PoE power type is end-span(1/2+,3/6-line pair) Power Consumption ≤400W PoE Transmission Distance ≤100 meters Temperature Operating Temperature: -10℃~55℃(14℉~131℉); Storage Temperature: -40℃~70℃(-40℉~158℉) Dimensions (L×W ×H) 17.32 x 8.26 x 1.73 inches Weight 5.40 Lbs

Which One Meets Your Needs?

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars 26

4.5 out of 5 stars 110

4.1 out of 5 stars 27

3.8 out of 5 stars 35

4.8 out of 5 stars 26

3.2 out of 5 stars 4

4.4 out of 5 stars 49

Price

$199.99$199.99

$49.99$49.99

$138.49$138.49

$84.99$84.99

$59.99$59.99

$49.99$49.99

$69.99$69.99

Ethernet Port

28

8

18

10

11

7

10

PoE Port

24

8

16

8

8

—

—

Port Speed

28×10/100/1000Mbps

8×10/100/1000Mbps

18×10/100/1000Mbps

8×100/1000/2500Mbps+2x 10G SFP

11×10/100/1000Mbp

5×100/1000/2500Mbps+2x 10G SFP

8×100/1000/2500Mbps+2x 10G SFP

SFP Fiber Port

2x 1G SFP

—

—

2x 10G SFP

1x 1G SFP

2x 10G SFP

2x 10G SFP

PoE Total Budget

400W

120W

250W

120W

120W

—

—

Switch Type

Unmanaged

Unmanaged

Unmanaged

Unmanaged

Unmanaged

Unmanaged

Unmanaged

Mounting Options

Desktop, Wall or Rack Mount

Desktop or Wall

Desktop, Wall or Rack Mount

Desktop or Wall

Desktop or Wall

Desktop or Wall

Desktop or Wall

Switch Capacity

56Gbps

16Gbps

12Gbps

60Gbps

16Gbps

65Gbps

80Gbps

Fanless Design

✘

✔

✘

✔

✔

✔

✔

VLAN

✔

✘

✔

✔

✔

✔

✔

【28 Gigabit Ports】AUMOX PRO ethernet switch includes 24* 10/100/1000Mbps RJ45 PoE ports with 2 Uplink gigabit ports,2 x 1G SFP Slots. Excellent data transmission performance
【400W poe switch】AUMOX PRO network switch equipped with 24 802.3af/at PoE ports with up to 30W for each port, data, and power can be transferred on one single cable.It supports PoE power up to 400W for all PoE ports
【Plug And Play】AUMOX PRO 28 unmanaged poe switch just plug in the power cord and network cable, no configuration required, easy to use
【Built in industrial-grade fans】Powerful industrial-grade fans for better heat dissipation while effectively reducing noise, enabling longer-lasting operation in a variety of temperature environments, making the switch run more stable

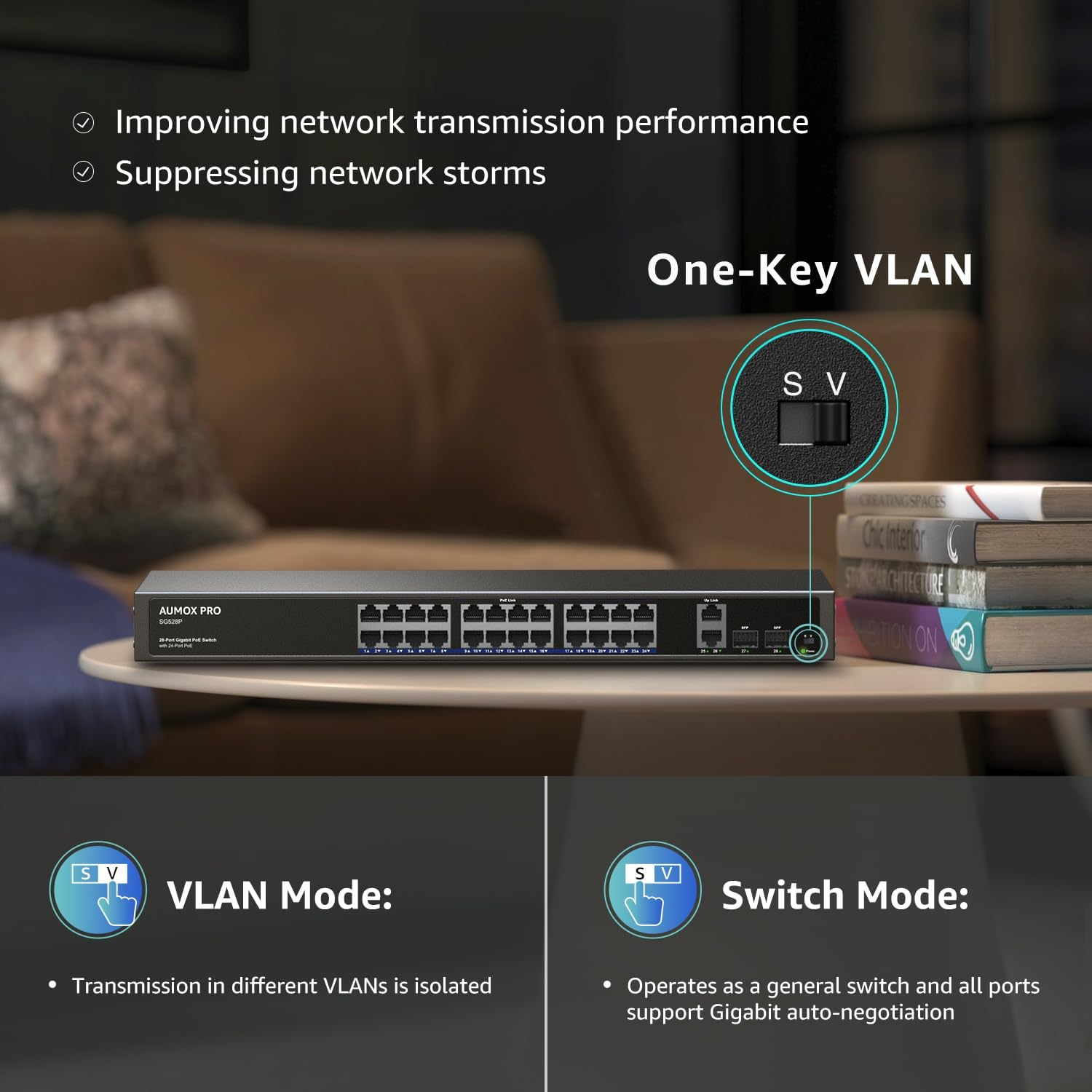

【One-Key VLAN】The 28 port power over ethernet switch features a One Key VLAN mode that Ports 1-24 are isolated from each other,they can only communicate with port 25-26.While 25-26 ports can communicate to each other port. Effectively suppress network faults such as network storms, ensuring good network transmission performance and security
【Metal case】AUMOX PRO 28 port PoE switch is protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, AUMOX PRO switch delivers switching performance you can depend on
【Multiple installation options】 Supports desktop, wall or rack placement, and the 19-inch length conforms to more switch racks
【Wide Applications】AUMOX PRO ethernet switch can connect PoE and non-POE devices, such as IP cameras, Access Point, Computer Networks devices, etc
【After-sales service】Every AUMOX PRO PoE switch is rigorously tested for reliability, quality, and performance. We supply a year after-sales service for whole products and technical support
