Product description
The surge protector supports data rates of 1000 Mbps without slowing down the signal. The surge protector ensures device safety without sacrificing speed and performance with data rate transfers of up to 1 Gigabit per second. This means that you can have peace of mind about the safety of your devices without sacrificing speed for your local area network (LAN), or for any other applications such as a wireless access point, IP or security cameras, VoIP phone, server, or a personal computer.

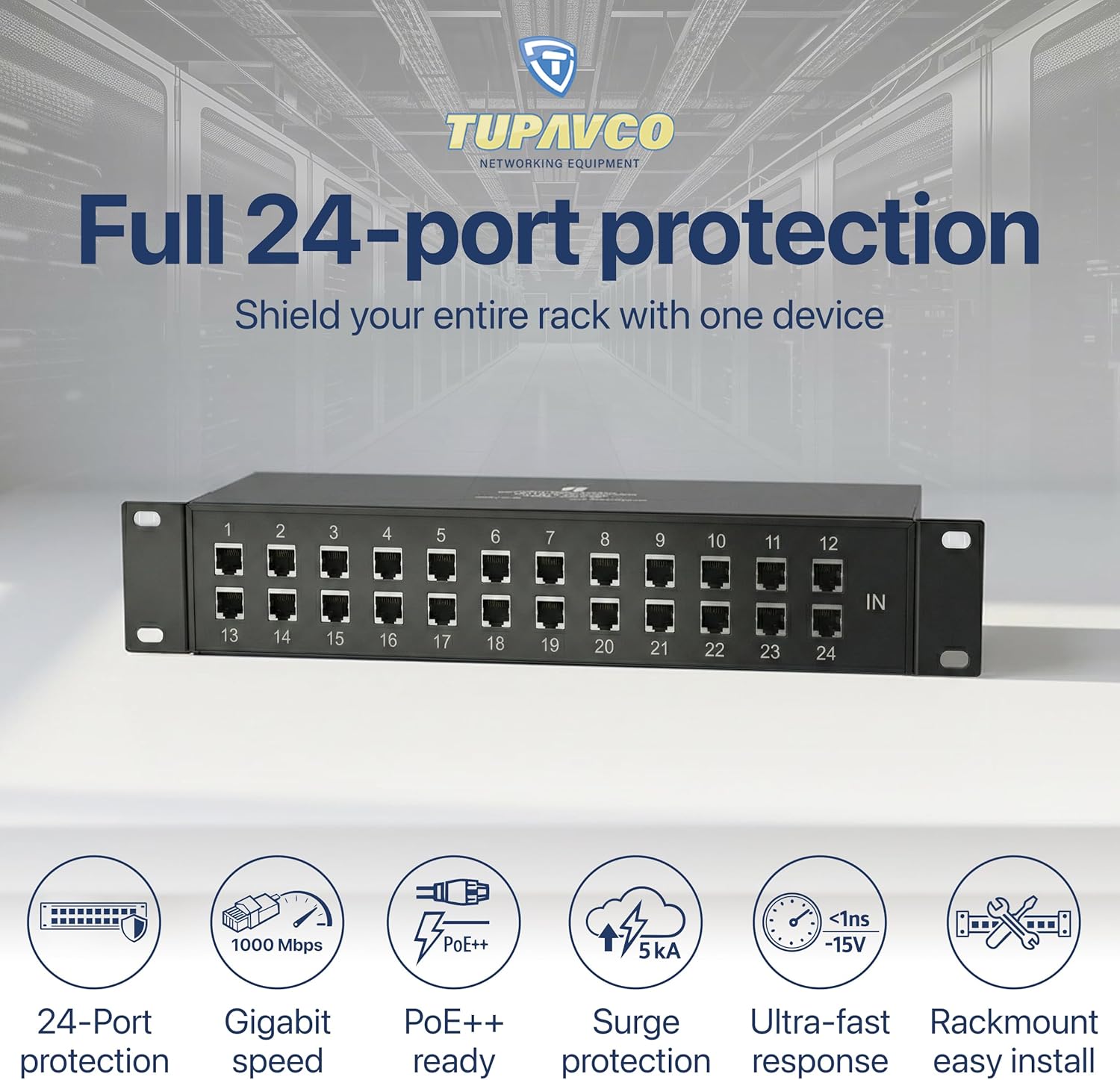

Protecting 24 lines of network cabling at once, the TP204 can keep all the parts of your network protected from high-voltage spikes, without slowing down your connection and compromising performance. It can fit right into your setup with PoE++ compatibility, low latency, high data transfer rates and easy installation.
Compatible with any standard 19″ network racks, with easy mounting via flange screws.
The surge protector supports data rates of 1000 Mbps without slowing down the signal. The surge protector ensures device safety without sacrificing speed and performance with data rate transfers of up to 1 Gigabit per second. This means that you can have peace of mind about the safety of your devices without sacrificing speed for your local area network (LAN), or for any other applications such as a wireless access point, IP or security cameras, VoIP phone, server, or a personal computer.
The surge arrestor is also compatible with PoE++ (IEEE 802.3bt) standards, capable of delivering 41 watts of power to your devices with the same single RJ45 connection line (CAT5/CAT6/CAT6A/CAT7) that transmits the network.
Keeping things simple for your setup, this enables a single cable to provide both the network signal and the power to your devices, while also protecting them from high-voltage surge events.
The surge protector is easily installed, being plug-and-play for your network setup. After that, it only needs a grounding wire connected for a ‘path of least resistance’ to dissipate the voltage of a surge event. In many cases, the network cabinet or bar is already grounded, and is the easiest connection for the ground wire. This device provides bidirectional transmission from both the IN/OUT port.
However, it is important to keep in mind that protection is applied to the equipment located downstream from the surge entry point. For complete end-to-end network protection, install a unit at both ends of the RJ45 link.
Working voltage – 48V (Power) / 5V (Network Signal)Rated current – 300mATransmission rate – 1000 MbpsMax discharge current (8/20us) – 5 kAClamping voltage – <15VInsertion loss – <0.2dBResponse time – <1ns
Easy rackmount installation on any 19 inch standard network rack cabinet
Ethernet surge protector with 1000 Mbps and PoE++ compitability – won’t slow your network down
Protects up to 5 kA for even the heaviest surges, lowers to <15V clamping voltage
RJ45 CAT5e/CAT6a/CAT7 compatability and ready in minutes with easy plug and play installation
PoE++ supports up to 48V power to your devices, low 0.2 dB insertion loss ensures no added latency
24 port surge protector shields multiple devices from lightning surges, keeping your network safe
$378.00
