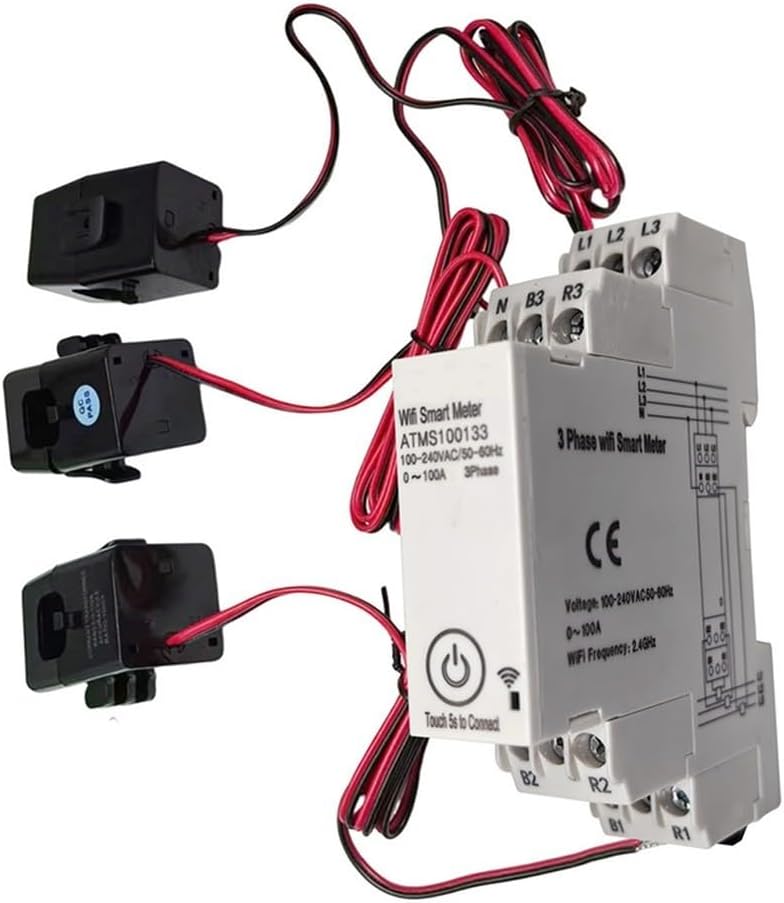

3-Phase Smart Energy Meter with Split-Core for CT (0–100A, 3×230/400V) for Tuya App, DIN Rail Mount, Bi-Directional Power Monitoring for Home & Industrial Use

Features:
3-Phase Smart for Energy Monitoring – This 3P4W smart meter is designed for three-phase four-wire circuits (3×230/400V, 50/60Hz) with a rated current up to 100A. It provides precise bi-directional energy measurement, tracking both grid consumption (forward energy) and solar reaction (reverse energy) for residential, commercial, and industrial use.
Real-Time Remote Monitoring via for Tuya Smart App – Access real-time electricity data anytime, anywhere through the for Tuya Smart App (2.4GHz ). Monitor key metrics including voltage (V), current (A), active/reactive power (kW/kVar), power factor, and total energy consumption for efficient power management.

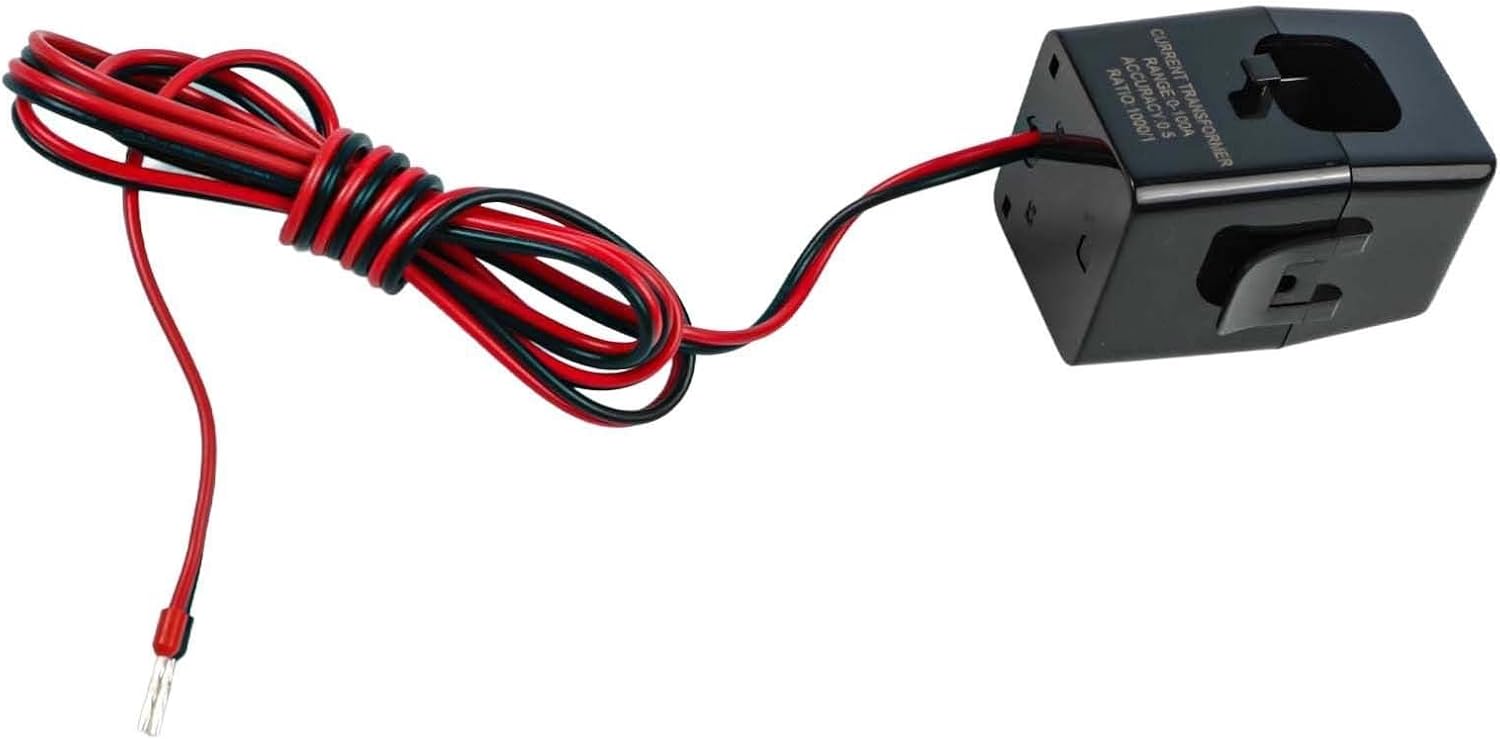

Split Core Current Transformer Design for Easy Installation – Features a high-accuracy (0.5 class) split-core current transformer with a 1000:1 ratio, supporting 0–100A measurement without cutting wires. for hassle-free retrofitting in existing electrical systems.
Comprehensive Energy Data Tracking – Records total active energy, forward/reverse energy, and real-time power usage. Helps optimize energy efficiency, detect anomalies, and analyze solar power contributions for cost savings.
Multi-User Sharing & Smart Alerts – Share device access with family or team members via the app for collaborative energy management. Stay informed with consumption insights to reduce waste and improve sustainability.
Specification:
Part Name: Three-phase smart meter
Color: Gray + Black
Material: Plastic
Size：90*65.5*18mm
type: ATMS100133
Nominal voltage: 100-240V AC (50/60HZ)
Wiring way: neutral and live wire
Operating range: (0.8…1.1) Un
Rated power: 2.2VA/0.7W
Current range: 0.02A-100A
Frequency: 2.4GHz
Poles: 3 phase 4 wire, 4P
Rated voltage: AC 3x230V/400V (Normal voltage Un: 180~260V,Operating range: 0.8~1.1Un)
Rated current: up to 100A (range 0~100A)
Frequency: 50/60Hz
Self-consumption: 2.2VA/0.7W
App: for Tuya Smart
Ambient temperature range: -20℃-+60℃
Mounting: DIN Rail 35 mm (EN 60715)
Application range: home, school, dormitory, shopping mall, hotel, factory, .
Package Contents:
1*Three-phase smart meter
3*Current Transformer

Precise Bi-directional Energy Measurement：This 3 Phase Energy Meter tracks utility power consumption and solar output accurately, applicable to residential, commercial and industrial energy management.
Real-time Remote Data Access：Get real-time electrical data via the dedicated app anywhere, monitor voltage, current, power factor and optimize energy management efficiency.
Detailed Energy Tracking：Automatically records total active energy, detects abnormal consumption and analyzes solar power contributions to boost energy efficiency and cut costs.
Multi-user Access & Real-time Alerts：Share device access via the app for joint management, receive real-time alerts on consumption trends and anomalies to grasp energy dynamics timely.
Stable Performance & Easy Integration：Made of high-quality components for stable operation, compatible with most solar and conventional power systems, simple to install and integrate.
