5-Port Ethernet PoE Switch (4 PoE Ports, 1 Uplink) with Extend Function, Easy Smart Managed Ethernet Switch, Plug & Play, Fanless Metal Design, VLAN, Qos,Desktop/Wall Mount

Product description

The Goalake 4 port cloud managed poe switch provides an easy, reliable, and affordable way to expand your network connections in homes and small offices. It is plug and play and features a rugged metal case. Features also include 4KV Lightning Protection, LED indicator on each port, fanless metal design, AI watchdog function of PoE port, AI PD detection and energy efficient design compliant with IEEE802.3af/at, enjoy precision bandwidth Control, QoS optimization,Support 802.1Q VLAN support, static MAC addressing, storm control, port mirroring, auto MDI/MDI-X, IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control, and more.

The Goalake POE switch managed poe + switch with 4 ports PoE+ and 1 uplink ports for surveillance, wireless access points and more. Goalake is your trusted partner in PoE Switches.

Specifications

Protocols Supported: IEEE 802.3af / at

Ports x Speed: 1*10/100/1000Mbps Uplink port, 2*10/100/1000Mbps PoE RJ45 ports, 2*10/100Mbps PoE RJ45 ports

PoE Power: Single port’s PoE power reaching 30W, total output power up to 52W.

Operating Temperature: 0-50℃ (32-122℉).

Dimension: 12.5 x 11.5 x 3.4 cm

Weight: 670 g

Sturdy Metal Case: Durable metal casing

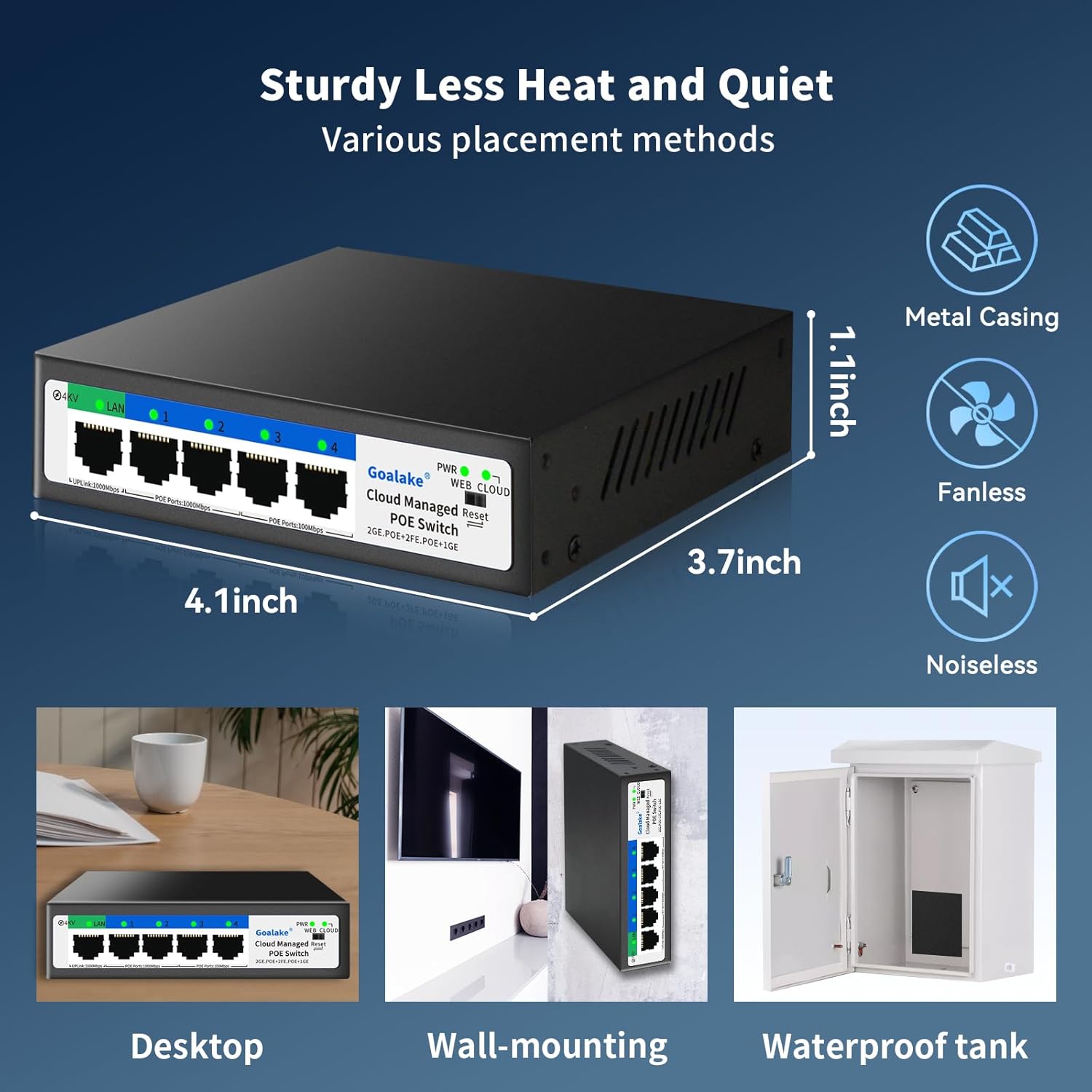

Versatile Mounting Options: Desktop or Wall Mount

Package Included: 1 * Goalake 4 Port Managed Ethernet Switch, 1 * Power Adapter, 1 * User Manual

Effortless Management via Web Interface

Easy Smart Management allows you to manage and configure your network effortlessly via a comprehensive web interface and free software. The Goalake 5-Port Managed PoE Switch is an exceptional choice for any business seeking robust network management capabilities.

250 Meters Extend Transmission

Goalake poe switch 5 port automatically detect the transmission distance and adjust the transmission rate, extend up to 250m(820ft) data and power PoE transmission range (Speed will drop to 10 Mbps). For better result over long distances transmission, use cat5e cables or above.

PD Detection

Automatically detect required PoE power for your device and protect your non-PoE equipment from being damaged.

Durable Metal

Lightweight rugged metal housing design makes it safe to use in various environments. 4KV Lightning protection.

Compact Size

Compact, lightweight design. Fits perfectly anywhere in your home or business.

Dimensions: 4.9″ x 4.5″ x 1.3″.

5 Ports Easy Managed Poe Switch: Goalake easy managed poe+switch includes 4 managed poe ports(2*1000M+2*100M) + 1*1000M uplink port. Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port. Data, and power can be transferred on one single cable. It supports PoE power up to 52W for all PoE ports. ( please note that if your device is a passive PoE or non-PoE device, the switch will only be able to transmit data, not power. In such cases, connected devices need an independent power supply. Alternatively, you can use an active PoE splitter to power your devices.
Enhanced Power and Flexibility: Easy Smart Management allows you to manage and configure your network effortlessly via a app or a comprehensive web interface and free software, easily monitor and manage your network from anywhere with the intuitive cloud management interface. Experience the superior power and flexibility of Goalake PoE switches with POE+. Enjoy cost savings and simplified installations with plug-and-play functionality, making it easier to set up IP cameras and wireless access points. You can mount the PoE switch on the wall or desktop, perfect solution for home office and a variety of environments.
Powerful PoE Functionality: This 802.3at PoE switch delivers up to 30W of power per port to connected devices like IP cameras and access points from up to 250 meters away.s, reducing the need for manual maintenance and enhancing reliability.
Advanced Features for Ultimate Control: Automatic detection of network cable quality, Enjoy precision bandwidth Control, QoS optimization,Support national-standard 802.3af/at PoE, 802.1Q VLAN support, static MAC addressing, storm control, port mirroring, auto MDI/MDI-X, IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control, and more. Our 5 ports smart managed PoE switch gives you the power to customize your network.
High Cost-effectiveness: Reduce setup time and ongoing maintenance costs with our plug-and-play Cloud Managed Switch. You only need to spend the price of ordinary switches to purchase our switches with cloud management function. Our cloud management switches provide an intuitive visual interface. When remotely managing the switches, you can have a clearer understanding of the network status and device configuration, and quickly locate and solve problems that occur on site without having to visit the site in person.
Compact and User-Friendly: Our PoE switch features a built-in Industrial Power Supply and a durable metal housing, ensuring reliability and longevity. LED indicator lights make monitoring easy, while the fanless design keeps operation silent and hassle-free. Setting up is a breeze, making it perfect for new users looking for a reliable networking solution.
Professional Lightning Protection: With 4KV lightning protection, our Goalake PoE switch is designed to withstand the impact of lightning strikes. Featuring two levels of protection, it effectively safeguards your entire network monitoring system, providing a secure environment for your devices.
Tech Support & 1year free replacement: Our managed PoE switches offer exceptional value for your investment, combining high quality with affordability. Additionally, we provide a comprehensive one-year after-sales service plan. Should any issues arise within the first year from your order date, we offer replacements and tech support to ensure your satisfaction. Customer satisfaction is our top priority, and we are committed to providing excellent after-sales service.
