Access Control System with Remote Control – 600lbs Magnetic Door Lock Kit, 12V Fail Safe NC Mode, Secure & Easy DIY Installation for Smart Home Entry, Works with Wooden & Metal Doors

Product description

Access Control System with Remote Control – 600lbs Magnetic Door Lock Kit

DESCRIBE

The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits.

The function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the mag lock will unlock temporarily to open the door.

0/5/10 seconds locking delay time adjustable, default is 5 seconds.

An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

ELECTRIC MAGNETIC LOCK

Input Voltage: 12VDC

Current: 520mA

Holding Force: 600lbs (280kg)

Fail Safe mode: Unlocked while power is removed

Cover Finish: Anodized aluminum

Lock Finish: Zinc

Armature Plate Finish: Zinc

Size (L x W x H): 250 x 49 x 25 (mm) / 9.84x 1.93 x 0.98 (inch)

Armature Plate Dimension (L x W x H): 180 x 38 x 11(mm) / 7.09 x 1.50 x 0.43 (inch)

1200lbs Magnetic Lock

Cover Finish: Anodized aluminum

Lock Finish: Zinc

Armature Plate Finish: Zinc

Input Voltage: 12V DC

Current: 12V/480mA

Holding: 500kg / 1200Lbs

Fail safe: Unlocked while power is removed (NC Mode)

Size (L x W x H): 265 x 75 x 39 (mm) / 10.43x 2.95 x 1.54 (inch)

Armature Plate Dimension (L x W x H): 185 x 60 x 13(mm) / 7.28 x 2.36 x 0.51 (inch)

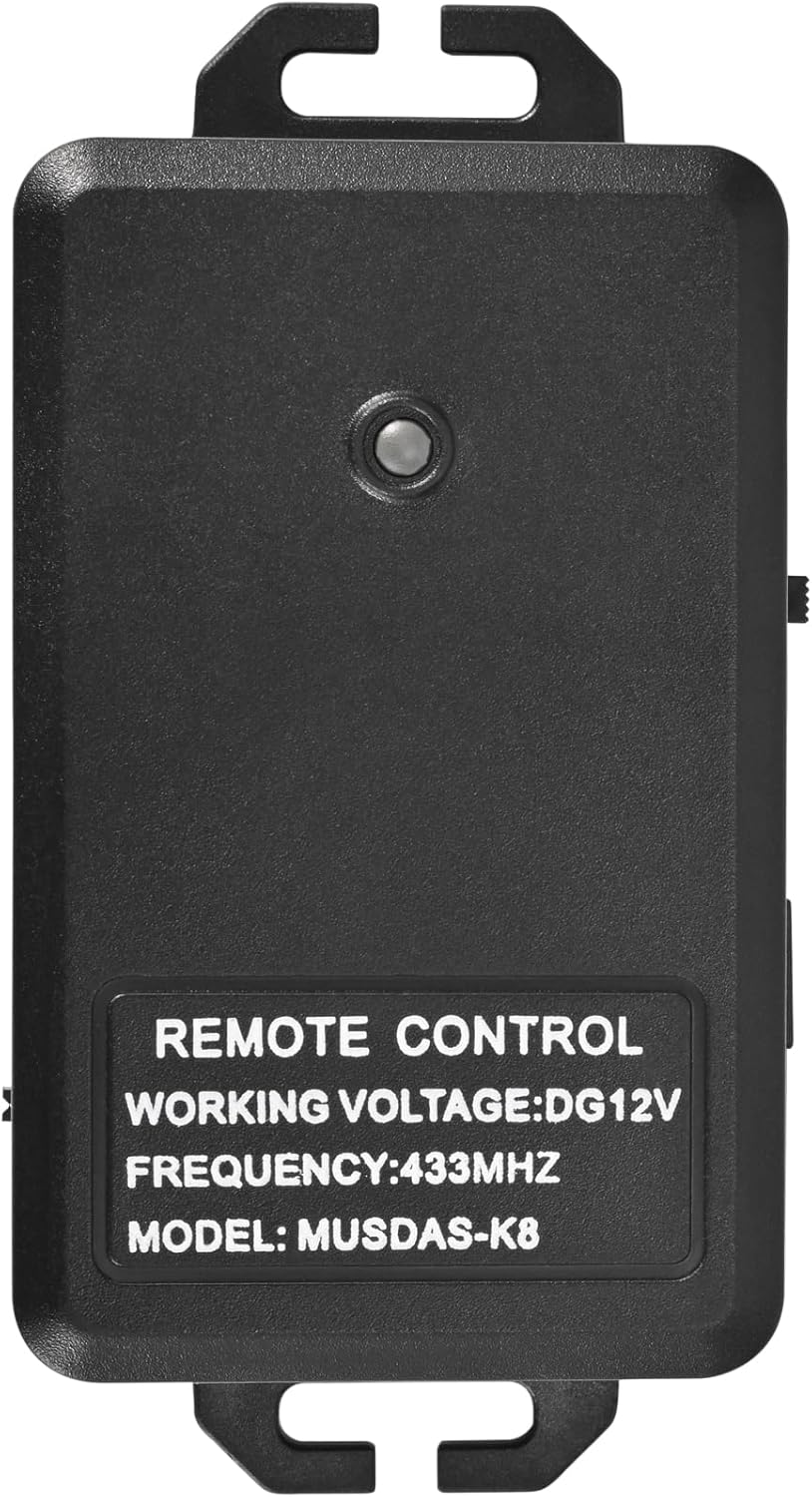

REMOTE CONTROL

Voltage: 12VDC

Frequency: 433MHz

RF channels: One

Remote Transmitter Support: Max. 40

DC Encoding Type: Learning code

Adjustable Locking Delay: 0/5/10sec

Size (L x W x H): 92 x 46 x 25 (mm) / 3.62x 1.81 x 0.98 (inch)

POWER ADAPTER

Type: 12V 2A Power Supply Wall Charger

Input: AC100V-240V 50/60Hz

Max Output: DC12V / 2A (2000mA)

AC Cord Length: 2.95 feet (0.9 meters)

Wire Type: 22AWG

Size (L x W x H): 75 x 40 x 30 (mm) / 2.95x 1.57 x 1.18 (inch)

PUSH to EXIT BUTTON

Mechanical Life: 500000 tests

Current Rating: 3A@36VDC Max.

Output Contact: NO/COM

Operating Temperature: 14℉~131℉ (-10℃～55℃)

Operating Humidity: 0-95% (relative humidity)

REMOTE TRANSMITTER

Working voltage: 6VDC

Operating Current: 3mA

Powerd by: 1pcs Alkaline battery (Built-in)

Service Life of the Battery: 50000 cycles tests

Transmitting Frequency: 433MHZ

Buton: 2

Enclosure Material: ABS Plastic

Size (L x W x H): 60 x 28 x 11 (mm) / 2.36x 1.1 x 0.59 (inch)

Magnetic Buzzer

Rated Voltage: 12V

Rated Current (MAX): ≤12mA

Min Sound Output at 10cm:≥95dB

Resonant Frequency:3000 ±500Hz

Operating Temperature：-20~+70℃ （-4-158）℉

Enclosure Material: ABS Plastic

Size (L x W x H): 46 x 30 x 15 (mm) / 1.81x 1.18 x 0.59 (inch)

PACKAGE LIST

1 x Electric Magnetic Lock

1 x Remote Receiver

2 x Remote Transmitter

1 x Push to Exit Button

1 x Power Adapter

1 x English User Manual

1 x Magnetic Buzzer

Strong Holding Force – 600lbs Security Heavy-duty magnetic lock provides up to 600lbs of holding force, keeping your home safe from unauthorized access.
Fail Safe NC Mode – Auto Unlock When Power Off Designed for safety and emergency use, the lock automatically unlocks when power is cut—perfect for homes requiring fire safety compliance.
Easy DIY Installation – No Professional Needed Comes with clear instructions and mounting hardware, allowing quick setup on wooden or metal doors without special tools.
Remote Control Access – Smart Convenience Includes wireless remote controls for convenient keyless entry—unlock your door with a simple press from up to 50 feet away.
Wide Compatibility – Ideal for Home Use Perfect for wooden and metal doors, this system fits most residential front doors, apartments, or home offices looking to upgrade security.
