Cudy Outdoor AX3000 High Power WiFi 6 Access Point, IP65 Weather Proof, External High Power FEMs, Gigabit RJ45 Ports, Support 802.3at or 48~57V Passive PoE, Lightning Protection, MU-MIMO

Product description

Super-Fast, Super-Efficient AX3000 Wi-Fi 6

The advanced Wi-Fi 6 provides up to 3 Gbps total throughput. OFDMA and MU-MIMO allow it to connect over 100 devices while minimizing latency. (Max 512 devices)

High-Power Wi-Fi Coverage with Five PA

Equipped with five power amplifiers and a 3+2 antenna structure, this AP delivers top-notch capabilities to navigate its signal through physical obstacles.

Works in Rain, Thunder, Dust, Heat, Cold

The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 6 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 158 °F (-40 ℃ to 70 ℃).

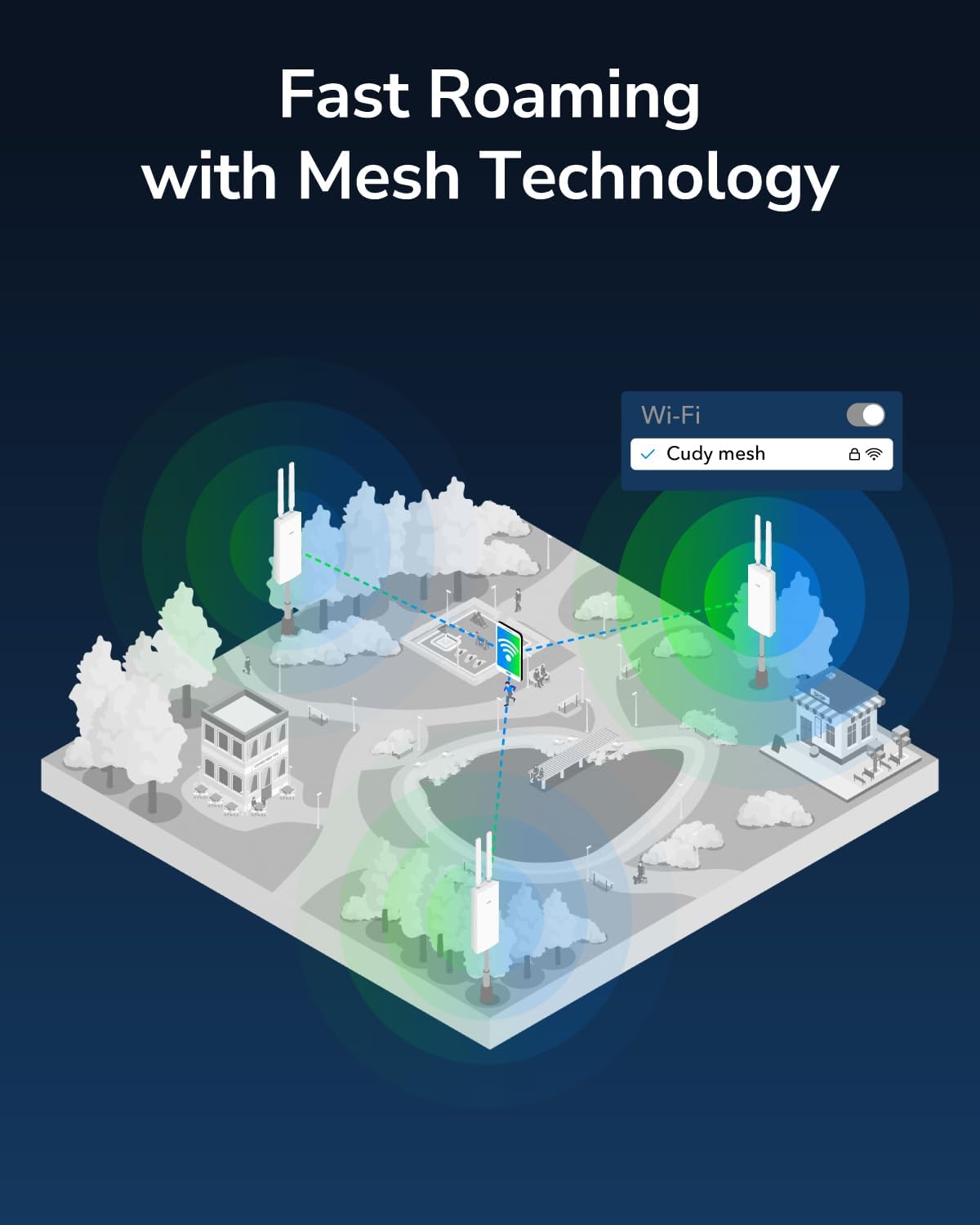

Mesh Networks Seamless Roaming for Smooth Wi-Fi Experience

Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.

Plug-and-Play Mesh Installation Simply Plug and Unplug for Mesh Setup

Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or continue using the Ethernet backhaul after pairing.

Leave the Rest to Adaptive Routing

Adaptive Routing improves the system’s awareness of the capacity used by each node. The system will automatically switch to a better path once the original backhaul path is congested.

Guide to Wiring and Physical Installation Gigabit Port with Two PoE Options

Supports two powering methods—

802.3at PoE (Max power: 18 W, Idle: 5 W)48-57 V Passive PoE (Adapter included, not waterproof)

If you need to simplify the wiring, we recommend using a PoE Switch that powers multiple devices simultaneously. See Cudy PoE Switches for more information.

Mounting Kit Included

A mounting kit is included in the box, supporting—

Wall-MountingPole-Mounting

Centralized AP Management

Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

High PowerAX3000 Dual Band Wi-Fi 6 Access Point for Wide coverage. Equipped with five power amplifiers and an advanced high gain antennas, this AP delivers top-notch capabilities to navigate its signal through physical obstacles, providing extraordinary Wi-Fi coverage performance for a larger area.
IP65 rated waterproof housing and 6KV lightning protection design, suitable for outdoor use. Pole or wall mount for easy installation in your yard, shop, farm or RV.
5-IN-1 Multifunctional Wireless Access Point. AP1300 outdoor is not only an outdoor wireless access point, it can also work as an outdoor WiFi Extender, Gigabit Outdoor WiFi Router, Gigabit Outdoor WISP Router or Gigabit Mesh Router. You can configure the operating mode to meet your requirement.
RP-SMA interface and detachable WiFi antennas. 2 external 5dBi WiFi antennas enhance the sensitivity of the router and improve the signal quality of WiFi. At the same time, the WiFi antenna is a detachable design. If you want to use other high gain outdoor antennas, the RP-SMA connector also provides the possibility of an external cellular antenna.
Multiple Power Options for Easy Installation. AP3000 Outdoor supports 802.3at/af PoE or 48~57V passive power supply ( adapter included ), can be either powered by a PoE switch or PoE Injector adapter, making deployment effortless and flexible.
