Electric Meter, Single Phase 4P LED DIN-Rail Electricity Power Consumption Wattmeter Energy Meter DDM75S 10 to 40A Digital Display

Product description

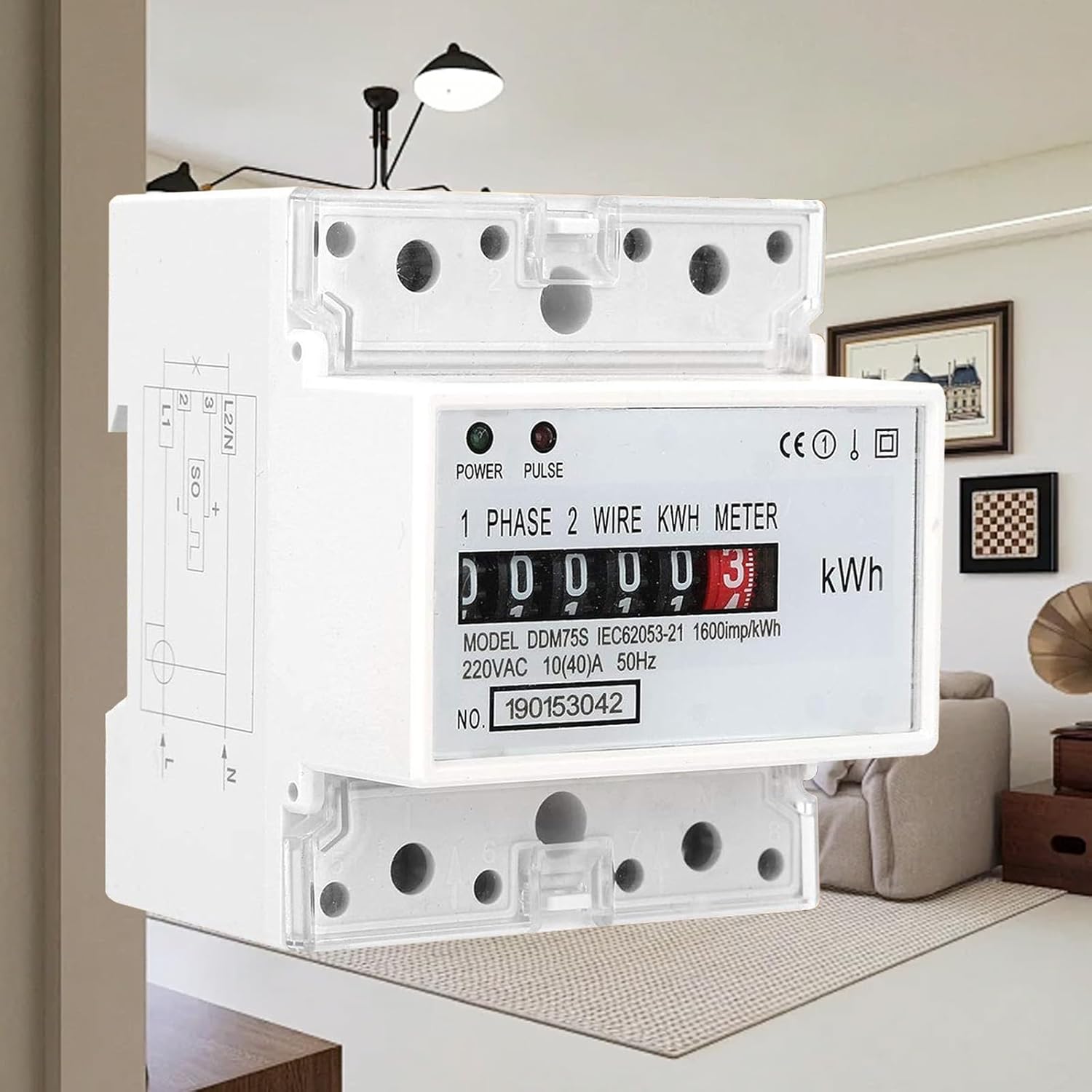

DDM75S Single Phase 4P Din Rail Energy Meter Electric Meter

Power Consumption Meter Kwh Meter with 5+1(99999.1KWh) Digital Display

Electric KWh Meter Power Consumption Wattmeter Energy Meter 10-40A

Moreover, the product supports direct connection and offers two wiring options. The default configuration is S-type wiring, and U-type wiring is also available as an option. The additional terminal cover design protects the user’s safety

Electricity Usage Monitor

35mm standard DIN-rail mounting in accordance with standard DIN EN50022Double color LED indicates the power status (green) and the energy pulse signal (red) Six widths (12.5mm modulus) in accordance with DIN43880 Standard configuration 5+1(99999.1KWh) digital display Extend the terminal cover to protect the use of the security

Small size, light weight, good reliability and easy installation

The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.One-way measurement of single-phase two – wire active energy consumption . This has nothing to do with the direction of the load current. Comply with IEC 62053-21.

Voltage Specification: 220V/230V Frequency: 50/60Hz Current Specifications: 10(40)A Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV

Package List: 1 x Energy Meter

Specification:

Item Type: Din Rail Energy MeterModel: DDM75SDisplay mode: (5+1) digital displayInstallation method: rail installationWeight: 246 g / 8.7 oz(approx.)

DIN Rail Mounting: The energy monitor is small size, light weight, with good reliability and easy installation. 35mm standard DIN-rail mounting in accordance with standard DIN EN50022. Six widths (12.5mm modulus) in accordance with DIN43880.
Easy to Contact: The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
Two Wiring Methods: The din rail energy meter has direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected. Extend the terminal cover to protect the use of the security.
Smart Display: Standard configuration 5+1(99999.1KWh) digital display. Double color LED indicates the power status (green) and the energy pulse signal (red).
Flame Retardant Material: The energy monitor is made of quality flame retardant material, which is durable, fire proof, proof to high and low temperature, and wear proof, so that the safety of electricity consumption is guaranteed.Small size, light weight, good reliability and easy installation.
