Intellinet PoE-Powered 5 Port Gigabit Switch with PoE Passthrough – One IEEE 802.3bt PoE++ PD Port, Five PoE+ Ports – 65W Power Budget – Fanless Silent – 3 Yr Mfg Warranty – 561808

Product description

Compact PoE Passthrough Switch

This compact switch lets you bring data and power wherever you need it without extra outlets or messy cables. Simply connect the PD port to an IEEE 802.3bt-compliant PoE injector or switch to draw up to 95 watts of power, or use the included adapter for up to 65 watts. It then passes both power and gigabit-speed data to four devices—like wireless access points, IP cameras or VoIP phones—while quietly extending PoE reach from 328 to 656 feet. The all-metal, fanless design tucks neatly onto a desktop or mounts on the wall, complete with surge-protection grounding, jumbo-frame support and a 10 Gbps fabric for smooth, reliable performance.

Delivers data and power over one cableExtends PoE reach from 328 ft. to 656 ft.Up to 30 W per port

Flexible PoE Power Input

Draws up to 95 W from an IEEE 802.3bt-compliant PoE injector or switch, or 65 W via the included adapter. Automatically allocates power—up to 30 W per port—with legacy support for 25 W (802.3at) and 10 W (802.3af).

IEEE 802.3bt/at/af compliance95 W max input (from IEEE 802.3bt-compliant PoE device into PD port)Up to 65 W PoE Power Budget30 W max per port

True Gigabit Performance

Five auto-sensing 10/100/1000 Mbps ports feed a 10 Gbps switch fabric. Auto-MDIX negates crossover cables; jumbo frames up to 9 KB maximize throughput.

10 Gbps backplaneStore-and-forward switchingIEEE 802.3x full-duplex flow control

Quiet, Compact & Secure Design

All-metal housing, fanless operation and grounding point protect gear without noise. Mount on walls via built-in holes or use rubber feet on desktops.

Fanless, silent runningWall-mount or desktopGrounding point for surge protection

Robust Protection & Management

Detects non-compliant devices, stops short circuits, overloads and high-voltage events. Holds up to 2,048 MAC entries with 1 MB buffer for smooth traffic.

Short-circuit & overload shutoff2,048 MAC address table1,024 kB buffer memory

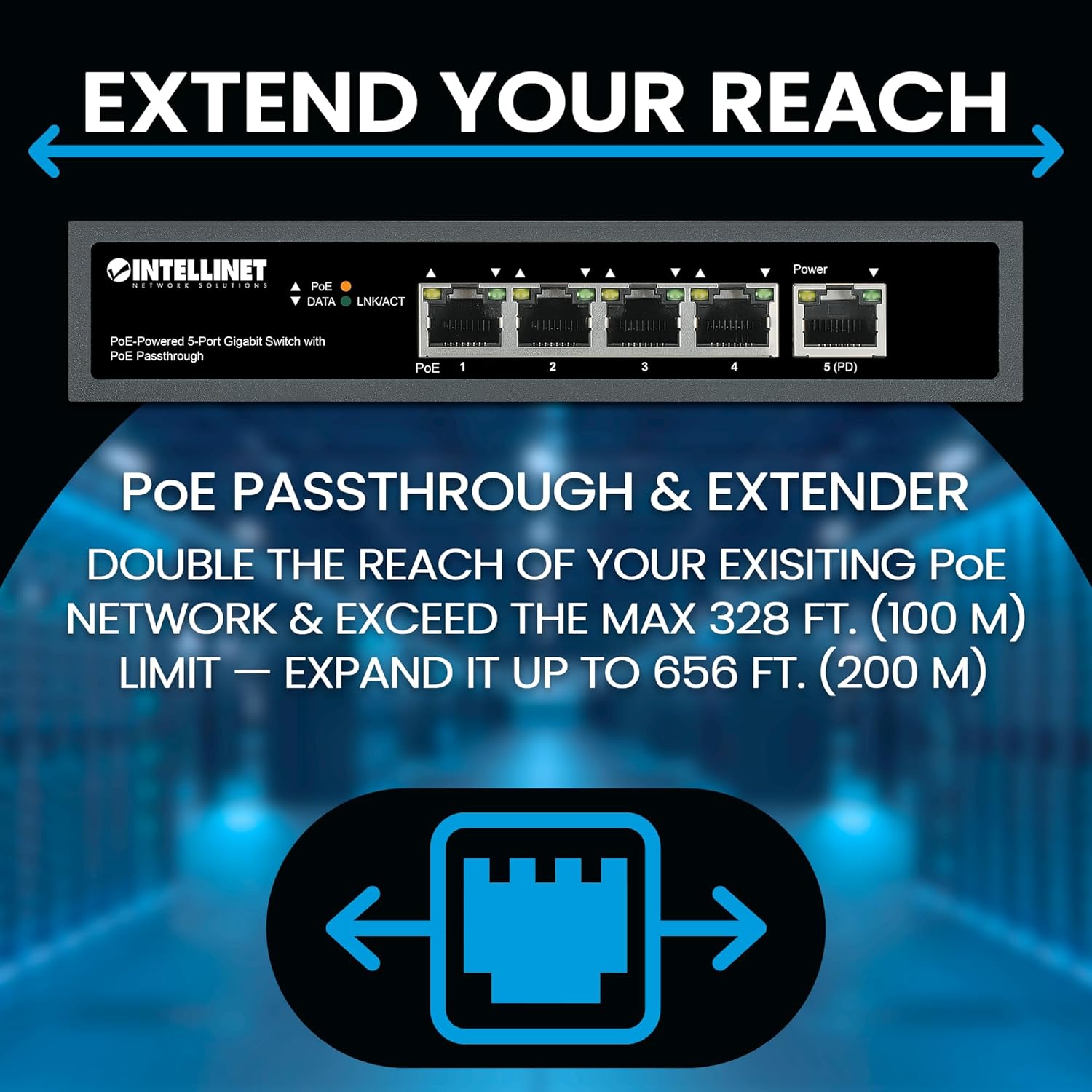

Built-in Passthrough & Range Extender

Passes both power and data to four devices and doubles PoE reach from 328 to 656 ft. Ideal for ceilings or remote cameras—no extra outlets or wiring needed.

200 m (656 ft) PoE rangeZero rewiring costSupports up to four PoE devices

Intellinet Model Number 561808 IEEE Standards 802.3, 802.3u, 802.3ab, 802.3af/at/bt, 802.3x Ports Five RJ45 auto-sensing Gigabit (PoE on four) Backplane 10 Gbps switch fabric MAC Table 2,048 entries Buffer Memory 1,024 kB PoE Budget 65 W via adapter or 802.3bt; 25 W (at), 10 W (af) Adapter Input 100–240 VAC, 50–60 Hz, 2 A Adapter Output 54.5 V DC, 1.32 A Dimensions 3.66 × 6.61 × 1.26 in. Weight 0.88 lbs net; 1.98 lbs gross Temp (Op.) 32 °F to 104 °F Temp (Storage) 32 °F to 158 °F Humidity 10–90 % non-condensing Certifications FCC Class A, CE, RoHS, UKCA, NDAA Package Contents PoE-Powered 5-Port Gigabit Switch, power adapter, power cable, four rubber feet, and quick-start guide.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.1 out of 5 stars 24

5.0 out of 5 stars 2

5.0 out of 5 stars 4

4.7 out of 5 stars 10

Price

$78.99$78.99 $106.99$106.99 $112.99$112.99 $101.99$101.99

Intellinet Model Number
561808 562034 561679 509220

PoE Passthrough

✓

✓

✓

✓

Usable as a PoE Extneder

✓

✓

✓

✓

Indoor vs Outdoor Use
Indoor Indoor Indoor Outdoor

Ports
4 PoE Ports, 1 PoE Pd Port (with 95W Power Input) 4 PoE Ports, 1 PoE Pd Port (with 95W Power Input), 2 RJ45 Gigabit Uplink Ports 7 PoE Ports, 1 PoE Pd Port (with 90W Power Input), 4 PoE Ports, 1 PoE Pd Port (with 90W Power Input)

PoE Power Budget
65W 60W 85W 85W

Max Power Output per Port
up to 30W per Port up to 30W per Port up to 30W per Port up to 30W per Port

PoE Compatibility
IEEE 802.3 ab/af/at/bt/u/x IEEE 802.1 p/q, IEEE 802.3z, IEEE 802.3 ab/af/at/u/x IEEE 802.3 i/u/ab/af/at/bt/az/x IEEE 802.3 ab/af/bt/u/x

Extender Distance
Adds up to 328 ft. (100 m) to the connection distance from a PoE source to an output device Adds up to 328 ft. (100 m) to the connection distance from a PoE source to an output device Adds up to 328 ft. (100 m) to the connection distance from a PoE source to an output device Adds up to 328 ft. (100 m) to the connection distance from a PoE source to an output device

Power Over Ethernet (PoE) Flexibility: This switch supports both PoE and traditional power sources, offering versatility for your network setup. You can power it using a PoE injector, switch, or the included power adapter, making installation straightforward regardless of your environment.
Extended Range: Unlike standard PoE devices that have a 100 m limit, this switch doubles the distance to 200 m. This allows for more flexible device placement without compromising connectivity, which can be particularly useful in larger spaces or complex layouts.
Multiple Device Support: With the ability to power up to four PoE devices simultaneously, this switch is well suited for setups that include IP cameras, VoIP phones, and wireless access points. It simplifies your network by delivering both power and data through a single cable.
Reliable Performance: Features like auto-sensing ports and support for jumbo frames ensure optimal network speeds and efficient data handling. With a 10 Gbps switch fabric and support for up to 2048 MAC addresses, this device is built to handle demanding network tasks without bottlenecks.
Robust Protection: This switch includes short circuit, overload, and high-voltage protection, along with a grounding point to safeguard against electrical surges. Its fanless design also contributes to silent operation, making it suitable for office environments and quiet spaces.
