KETOTEK Amp Volt Watt Kwh Meter Tester Panel Digital 4 in 1 Ammeter Voltmeter Multimeter 12V DC 6.5-100V 20A, Voltage Current Power Energy Usage Monitor LCD Display Car Motorbike Solar

Product description

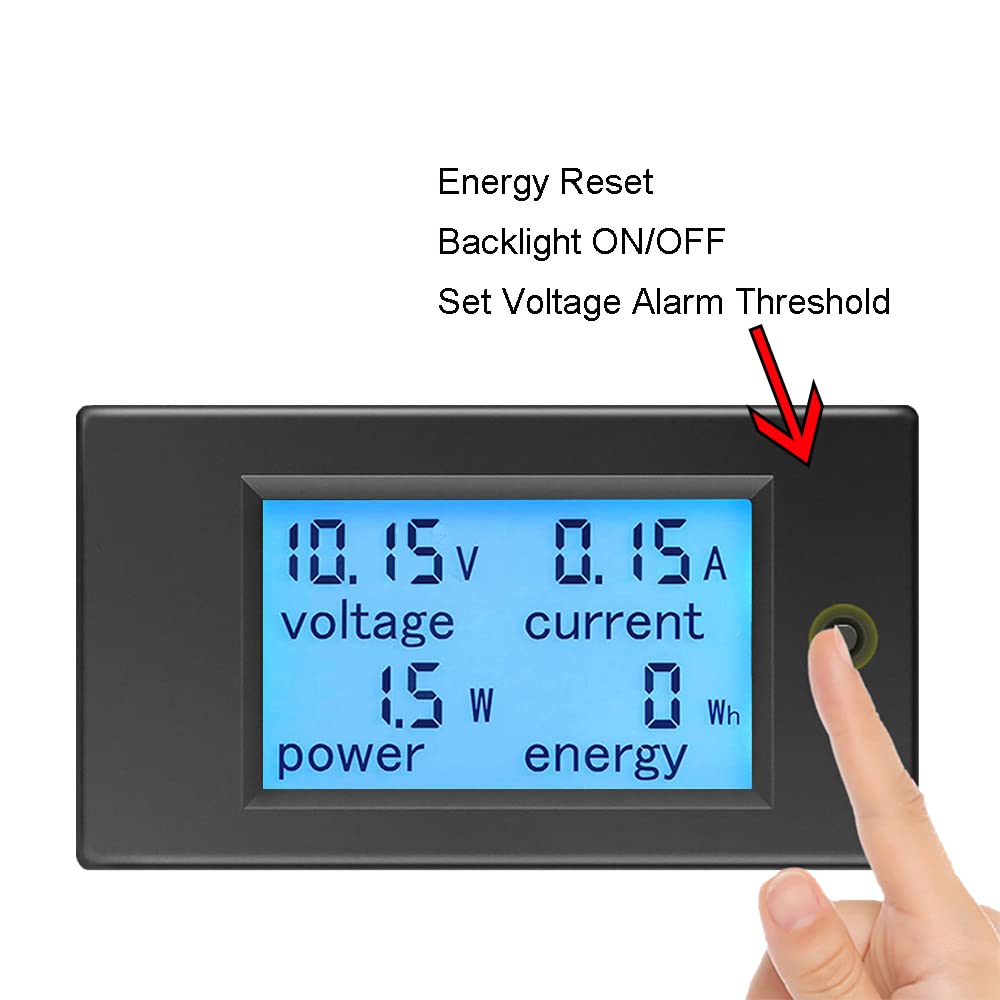

Electrical parameter measurement function (voltage, current, active power, energy).Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).The reset function of energy key.Store data when power off.Large screen LCD (display voltage, current, active power and energy at the same time)Backlight function.

Function

Backlight Control Press the key to turn on or off the backlight. The backlight state will be saved when power off.

Reset energy Hold the key for 5 seconds until the number flashes, then release the key.Press the key again, then the energy value is cleared and exit the reset flashing state. If you don’t want to clear, hold the key for 5 seconds again until the number doesn’t flash, it means the energy value is not cleared and will exit the reset state.

Voltage alarm Hold the key until the power display area displays “SET”, release the key.The voltage area displays current high voltage alarm value, the current area displays current low voltage alarm value and the last digit begins to flash. Press the key to adjust the value. It will automatically switch the digit without operation over 3 seconds, then press the key to adjust the value too. Voltage alarm threshold set range: 6.5V~99.9V.After finishing the settings, hold the key until the screen displays “PASS”.

Wiring diagram

Precautions:

1. This module is suitable for indoor, please do not use outdoor.

2. Applied load should not exceed the rated voltage, current.

3. Wiring order can’t be wrong.

【4 in 1 multimeter】 This digital DC ammeter voltmeter is used to measure the voltage, current, energy and active power of electrical devices.
【Measuring range】 Voltage test range: DC 6.5~100V, current test range: 0~20A, active power test range: 0~2kW, energy test range: 0~9999kWh. Please DO NOT exceed the rated parameters. 20A are only for short loads, but not for continuous operation. We recommend you change to 50A version if you use with a continuous output more than 15A.
【More function】 Large LCD display with backlight; voltage alarm function; energy reset function; Data storage when power off; Built-in shunt,no need for external shunt.
【Wide application】 This DC volt amp meter is suitable for indoor use and cannot be used outdoors. It can be used to monitor the volt, amp, power and energy usage of battery, solar system, electric bicycle generator and other fields. The load cannot exceed the rated voltage and current.
【Package】 Package: 1*DC multimeter, 1*User Manual (English). Pay attention: Please connect according to the wiring diagram we provide. The wrong connection will cause the product to burn out or not work.
