Product description
KPM-35 optical power meter is widely used in the construction, maintenance, inspection and acceptance of optical fiber communication network projects. The combination of fiber optic power meter & light source, check continuity, and help evaluate the transmission quality of optical fiber links. Smart appearance, sustainable backlit display, and friendly operation interface make you feel good about it. Provides 7 wavelengths detection, with automatic wavelength memory function. The ultra-wide optical power test range, precise test accuracy and new user self-calibration function will make your work even better. Universal interface design, support FC/SC/ST and other interfaces, without complicated conversion. In addition, the LED lighting function has been added to the product basis to allow it to be carried out in a dark environment, further improving work efficiency.KLS-35 fiber optic light source is characterized by stable output optical power, wavelength and spectral width with a small range of stable changes. Provide single and multi mode (850nm/1300nm/1310nm/1550nm) four-wavelength output. Mainly used for FTTX network and fiber optic testing. When combined with Optical power meter, it is used to measure optical power and end-to-end optical loss.
KPM-35 Power Meter Measurement Range：-70+10dBm
2.5mm universal interface ±0.2 dB accuracy0.01 dB ResolutionMeasurement Range -70~+10dBm
Support manual calibrationWater proof keys suitable for various outdoor environments Silicone jacket, anti-drop 2m Equipped with LED light, not afraid of the dark
Wavelengths: 850nm 980nm 1300nm 1310nm 1490nm 1550nm 1625nm
Product Parameter:
Wavelengths(nm) 850/980/1300/1310/1490/1550/1625(nm) Measurement Range -70+10dBm Optical Connector 2.5mm universal interface Power Supply Alkaline battery (3AA 1.5V battery), which are not in standard package Resolution 0.01dB Working Temperature -10+60(°C) Storage Temperature -25+70(°C) Dimensions/Weight 160*85*45mm/220g

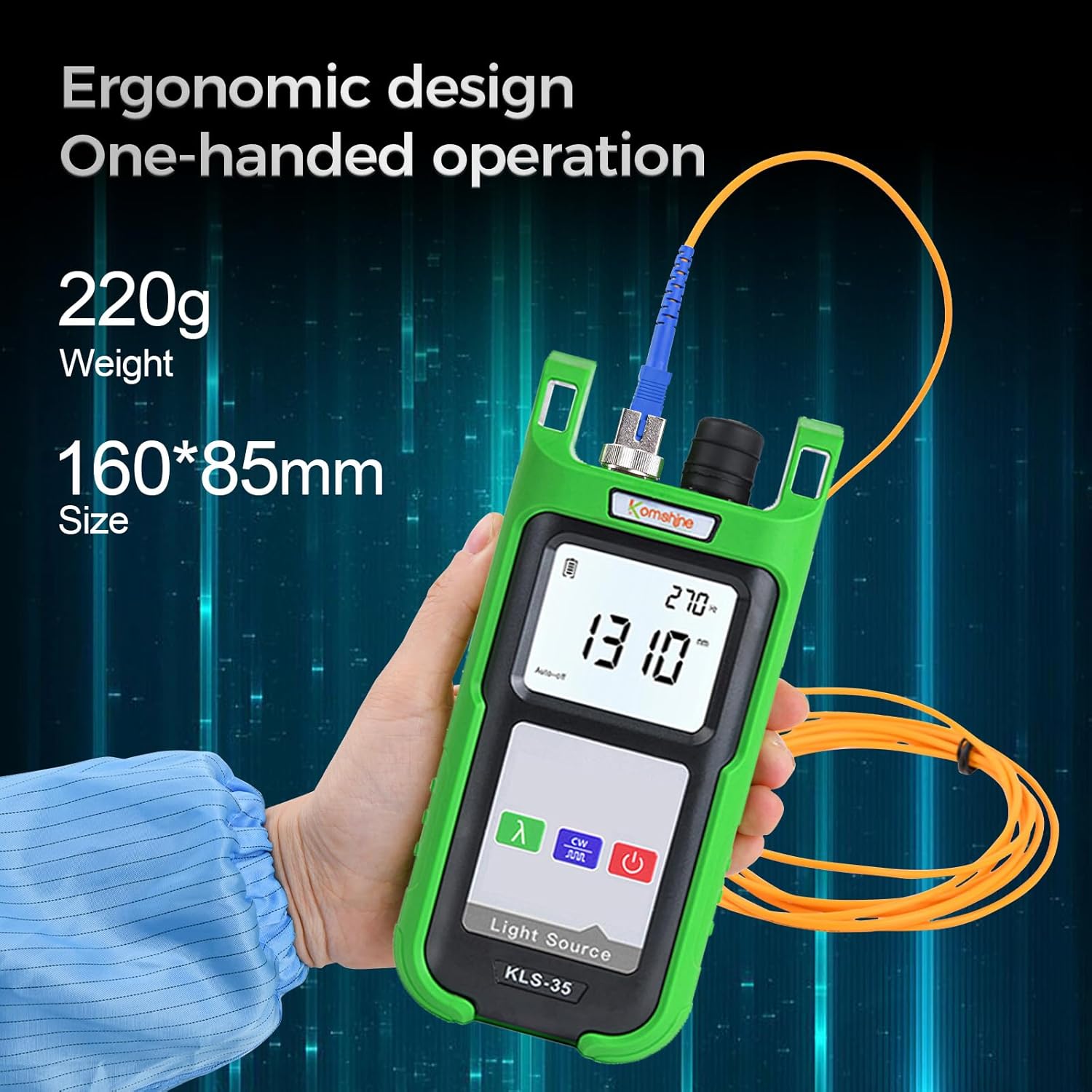

KLS-35 Optical Light Source Wavelengths : SM & MM 850 1300nm + 1310 1550nm
(1) Wavelengths : SM & MM
850 1300nm + 1310 1550nm
(2) Typical output power: -5dB
(3) 2.5mm universal interface + SC Adaptor
(1) Modulation carrier output: 270Hz/1000Hz/2000Hz
(2) Low power function display
(1) Silicon shell protection design: shock proof & Drop proof: 2m
(2) Waterproof key suitable for all kinds of outdoor environments
Product Specifications：
Wavelengths SM & MM 850 1300nm + 1310 1550nm Optical Connector SC+ 2.5mm Universal Connector Output Power -5dB Output Stability ±0.05dB/15mins; ±0.1dB/ 8hours Modulation Frequencies CW, 270Hz, 1KHz, 2KHz Dimensions / Weight 160x85x45mm / 220g Power Supply Alkaline Battery(3 AA 1.5V batteries), which are not in standard package
[Foundation]
KomShine Technologies Limited is found in April 2015, its headquarter is located in Nanjing, China, providing a variety of support services
related to design, manufacturing, and after-sales service for Optical Fiber Communication products.
[Certification]
KomShine Technologies Limited is a high-tech enterprise providing service of R&D, manufacturing and selling, has passed the Great Wall ISO9001, Quality System Certification, and the EU CE Security and RoHS certification.
[Products]
The Optical Fiber Communication products of KomShine Technologies Limited have a high performance-price ratio, considerate service, and
complete supporting facilities. The series of products such as optical fiber fusion splicer, OTDR, optical fiber end detector and optical fiber end cleaner are deeply favored by users at home and abroad.
[Application Fields]
KomShine products have been widely used in communications, radio and television, power, port, and other optical fiber network engineering, as well as optical passive device production, scientific research institutes, and other fields.
Remarks:
It is now in hot sale season. If you find it is out of F B A stock, we will ship it from our USA local warehouse, which is also very fast.If you find that you get a bad one, don’t worry! Take a picture or video to us through Amazon chatting window, we will arrange the new one to you immediately! It’s our promise from Komshine!
●[ KPM-35-G-A]: Measurement range -70~+10dBm; 7 Wavelength(nm) Detection: 850/980/1300/1310/1490/1550/1625nm;
● SC Adaptor; Equipped with LED lights, not afraid of the dark; ±0.2 dB accuracy
●[ KLS-35-MS]: SM&MM 850nm/1300nm/1310nm/1550nm;
● 2.5mm universal interface + SC Adaptor; Typical output power：-5dB
● Rubber armor protecion; Anti-proof; Power meter and Light Source Combine High Precision FTTH fiber cable test tool
$162.80
