LINOVISION Long Distance Outdoor PoE Extender, Max 2600ft Power and Data Transmission Over Cat5E/Cat6 IEEE 802.3af/at Waterproof PoE Extender, PoE Repeater for IP Cameras, VoIP Phone (2 Pack)

Product description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. waterproof poe extender Merchant Video

Note: This PoE extender is designed for PoE devices and must be used with an Ethernet cable. For non-PoE devices, first connect a PoE device, then replace it with the non-PoE device. Repeat this step if the PSE reboots or is replaced.

1 Transmission Performance

2 Key Specification

LINOVISION UltraReach PoE Switch/PoE Extender Selection Guide

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.1 out of 5 stars 67

3.5 out of 5 stars 2

3.5 out of 5 stars 2

4.1 out of 5 stars 43

4.0 out of 5 stars 42

4.0 out of 5 stars 197

3.8 out of 5 stars 11

Price

$89.99$89.99

$69.00$69.00

$99.00$99.00

$39.99$39.99

$24.99$24.99

$32.99$32.99

$49.99$49.99

Power Input

IEEE802.3af/at PoE

100 ~ 240V AC

100 ~ 240V AC

IEEE802.3af/at PoE

IEEE802.3af/at PoE

IEEE802.3af/at PoE

IEEE802.3af/at/bt PoE

PoE Output

1x 30W

2x 45W + 2x 30W

2x 45W + 6x 30W

1x 30W

2 x 30W

1 x16W + 1 x 8W

4 x 30W

UltraReach PoE Ports

1

4

8

/

/

/

/

Total PoE Budget

30W

60W

120W

30W

30W

30W

80W

PoE Standard

IEEE802.3af/at

IEEE802.3af/at

IEEE802.3af/at

IEEE802.3af/at

IEEE802.3af/at

IEEE802.3af/at

IEEE802.3af/at/bt

PoE Output Pin Assignment

1/2/4/5(+), 3/6/7/8(-)

1/2(+),3/6(-)

1/2(+),3/6(-)

1/2(+),3/6(-)

4/5(+), 7/8(-)

1/2/4/5(+) 3/6/7/8(-)

1/2(-), 3/6(+)

Extend Data Transmission Range

Max.2600ft(800m), Paired mode

Max.2600ft(800m),

Max.2600ft(800m),

330ft (100m)

330ft (100m)

330ft (100m)

330ft (100m)

Ethernet Speed

10/100Mbps

10/100Mbps

10/100Mbps

Gigabit

Gigabit

10/100Mbps

Gigabit

Waterproof

✔

✘

✘

✔

✘

✘

✘

Installation Method

/

/

/

/

DIN-Rail

DIN-Rail/ Wall-Mount

/

PoE EXTENDER – Extend extra 330ft or 100m POE + Ethernet network at 100Mbps bandwidth when using one of the PoE Extenders.
UP TO 2600ft SUPER LONG PoE TRANSMISSION DISTANCE – Two POE-EXT3001LP will automatically be in Paired Mode when two INPUT Ports (Orange) are connected directly. In Paired Mode, the max. PoE transmission distance is 2600ft or 800 meters (bandwidth will be lowered to 10Mbps after 1960ft or 600 meters).

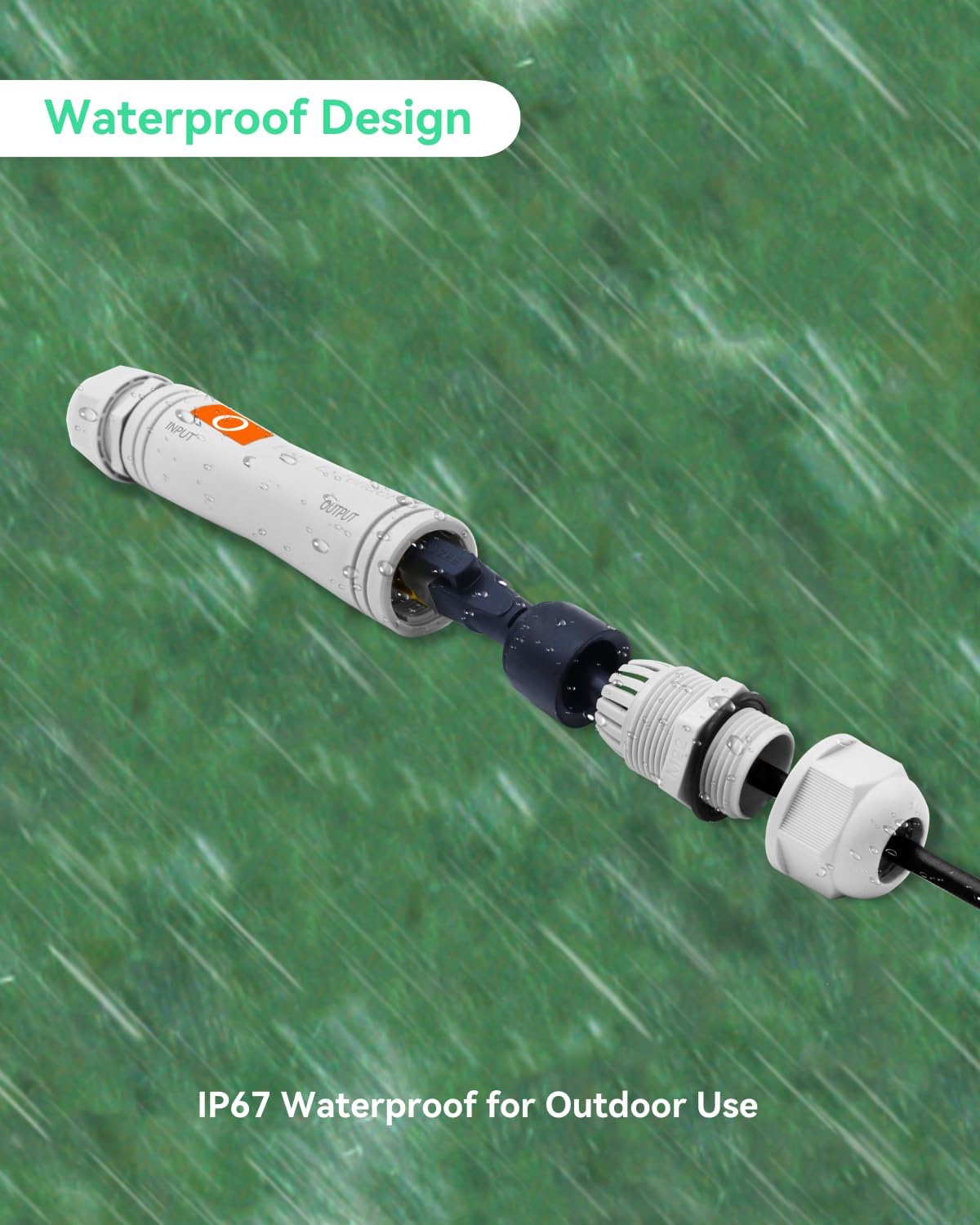

OUTDOOR RATED – IP67 waterproof standard, wide temperature range -10°C ~50°C (14°F～122°F), designed for harsh outdoor environments.
COMPLIANT TO IEEE802.3AF/AT STANDARD – Working with all standard IEEE802.3af/at POE Switches/POE injectors/POE NVRs. Supports connecting IEEE802.3af/at POE devices and non-POE devices.
EASY TO USE – Plug-n-Play, no configuration is required
Note: This PoE extender is designed to extend PoE & Data transmission for PoE Device only. To use it with Non-PoE device, please activate this PoE Extender by connecting a standard PoE device first.
