Product description
1 Front Ports
2 Back Ports
3 How to Insert Micro SD
Specification

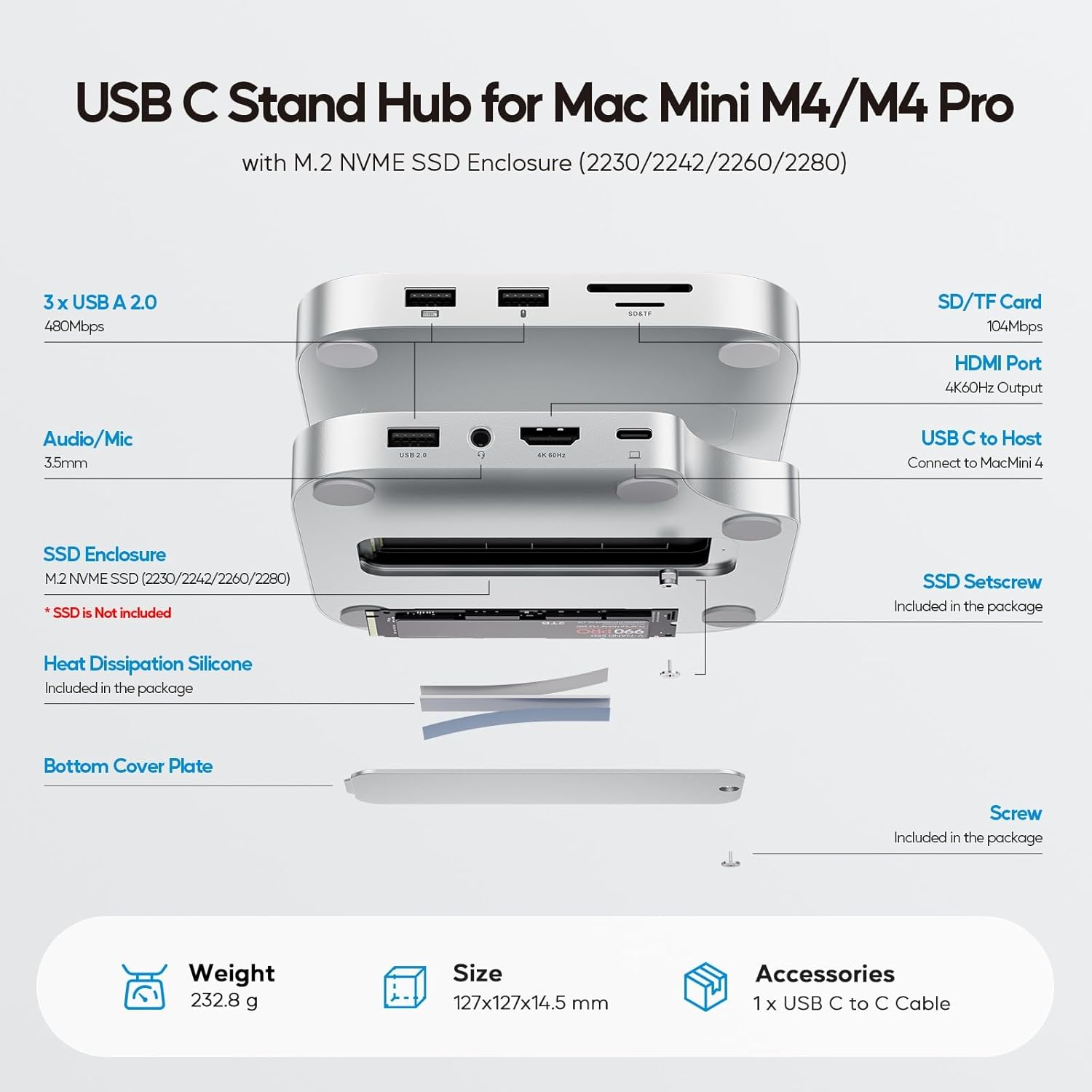

Product Name 9 in 1 USB C Hub Mount for Mac Mini M4 /Mac Mini M4 Pro 2024 (Model: BD240A) Input USB-C port 10Gbps Output 1 x 4K 60Hz HDMI; 3 x USB-A 2.0 (up to 480Mbps); 1 x 3.5mm Audio/Mic jack; 1 x SD/TF 3.0 (up to 104Mbps) ; 1 x M.2 SSD Enclosure (up to 10Gbps) ; 1 x USB-C to Host (up to 10Gbps) Compatible Devices USB C Hub Specially Designed for Mac Mini M4/ M4 Pro 2024. As universal USB-C Hub, it is also compatible with USB4, and full-featured USB-C laptops (support Power Delivery, Data Transfer and Display Alt Mode) Cable Length Detachable TPE Cable, 20cm USB-C (M) to USB-C (M) cable Materials Aluminum Package Weight Approx. 329g Package Dimension Approx. 125 x 125 x 15mm Compatible SSDs Type Support up to 4TB PCIe NVMe M.2 SSD (2230/2242/2260/2280) that complies with M key and B+M Key, NOT support SATA SSD and SSDs with heat sink. NOTE: If your SSD are new, please format your new SSD into “exFat” or “apfs ” format. STEPS: 1) PUT new SSD into the dock; 2) Connect the dock to your device; 3) Click the “Disk Utility”and format Some Compatible SSDs Samsung 980 Pro, Samsung 970 EVO; Western Digital Black SN850, Western Digital Black SN750, Western; Digital Blue SN550; Acer FA100; Crucial P2; Intel 670P Series; Siliconmotion SM2263XT, etc. Note 1 Please format your new SSD in “exFat” format before use; Note 2 All USB-A ports ONLY support data transfer, DO NOT support charging; Note 3 All USB-A ports do not support CD readers, Apple SuperDrive Note 4 Use all the HDMI and Audio ports of the Mac Mini M4 and the hub at the same time, ONLY pick the first one to work. Need to pre-set the audio output device, detailed setting steps refer to the product video on product description to know more. Note5 As all the ports share the 10Gbps bandwidth, the transfer speed cannot reach the maximum value of each port when all data ports are used simultaneously. Note6 The max-bandwidth of this hub is 10Gbps, so if you install a NVMe SSD greater 10Gbps(such as 40Gbps), it can ONLY reach the max 10Gbps.
USB C HUB FOR MAC MINI M4 – Custom-designed for Mac Mini M4, both a Mac Mini M4 2024 mount and a USB-C dock with an up to 4TB M.2 SSD external hard drive expansion slot. The mac mini m4 hub also features a 4K 60Hz HDMI, 3 x USB-A 2.0 data ports (Max 480Mbps) for mouse and keyboard, SD/Micro SD Card slots (104 Mbps), a 3.5mm audio/mic jack for convenient access to the essential peripherals and achieve memory expansion
4K HDMI HD OUTPUT – Equipped with USB-C to Host port (up to 10Gbps) to connect and expend your Mac mini. Via the HDMI output up to 4K@60Hz, you can be easy and convenient to mirror or extend your mac mini m4 to HDTV, monitor or projector to enjoy vivid video synchronization. Use both HDMIs of the hub and Mac Mini M4, it supports SST or MST mode for 2 monitors simultaneously. ★NOTE: If you Audio jack does not work, please Go to PC Settings – Click Sound – Select USB Audio System in the Output column

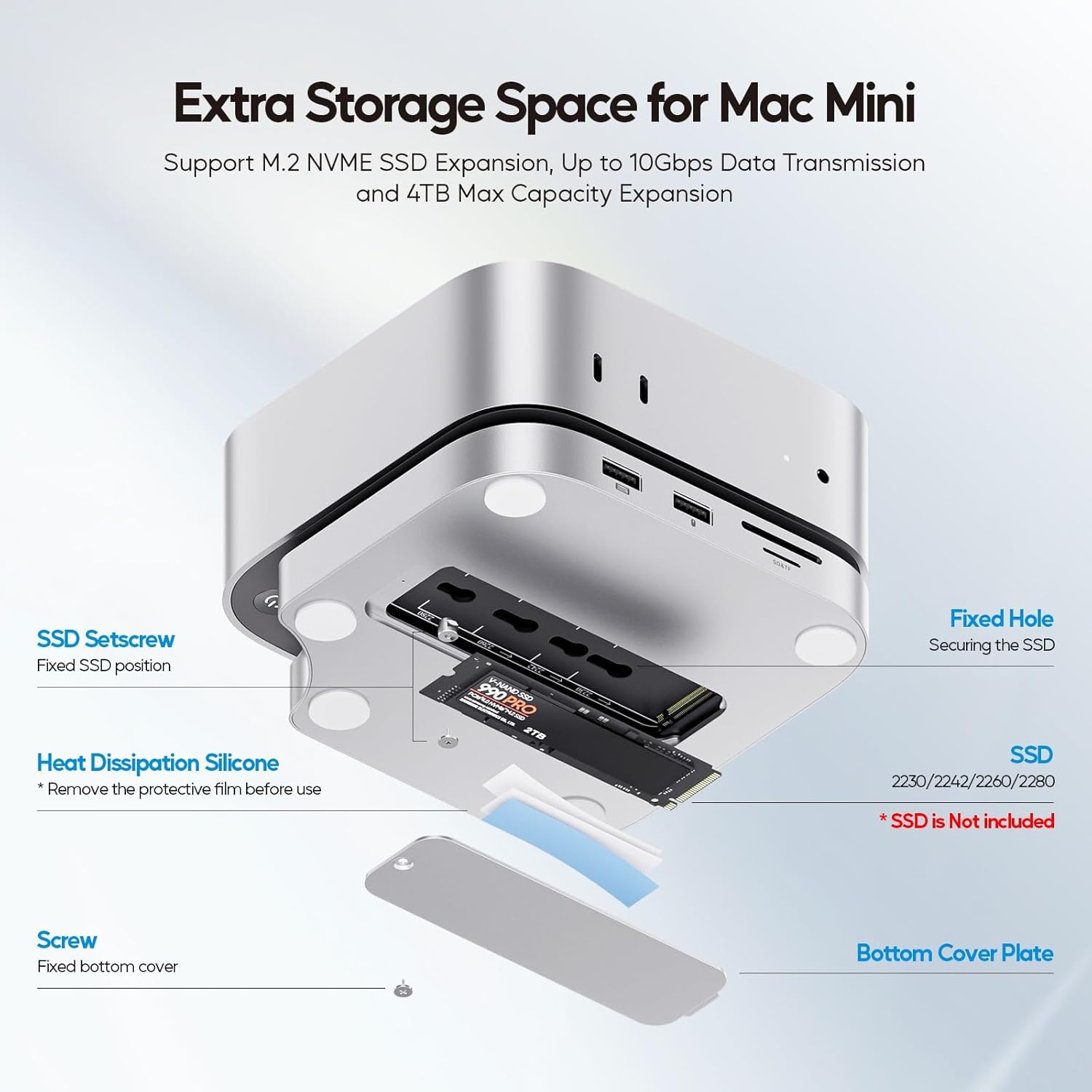

SUPPORTS 4TB M.2 SSD EXPANSION – The Mac Mini M4 2024 hub stand supports up to 4TB/10Gbps M.2 PCIe NVMe external hard drive expansion, perfect for the mac mini m4 users who needing additional storage without compromising speed or efficiency. Support PCIe M.2 SSDs in size of 2242/2260/2280. NOTE: 1). SSD is NOT included; 2). DOES NOT support SATA SSDs; 3) Please initialize the new SSD because SSDs must be formatted to work with host in order for SSD to mount and show up; 4) Please format your new SSD into “exFat” or “apfs ” format

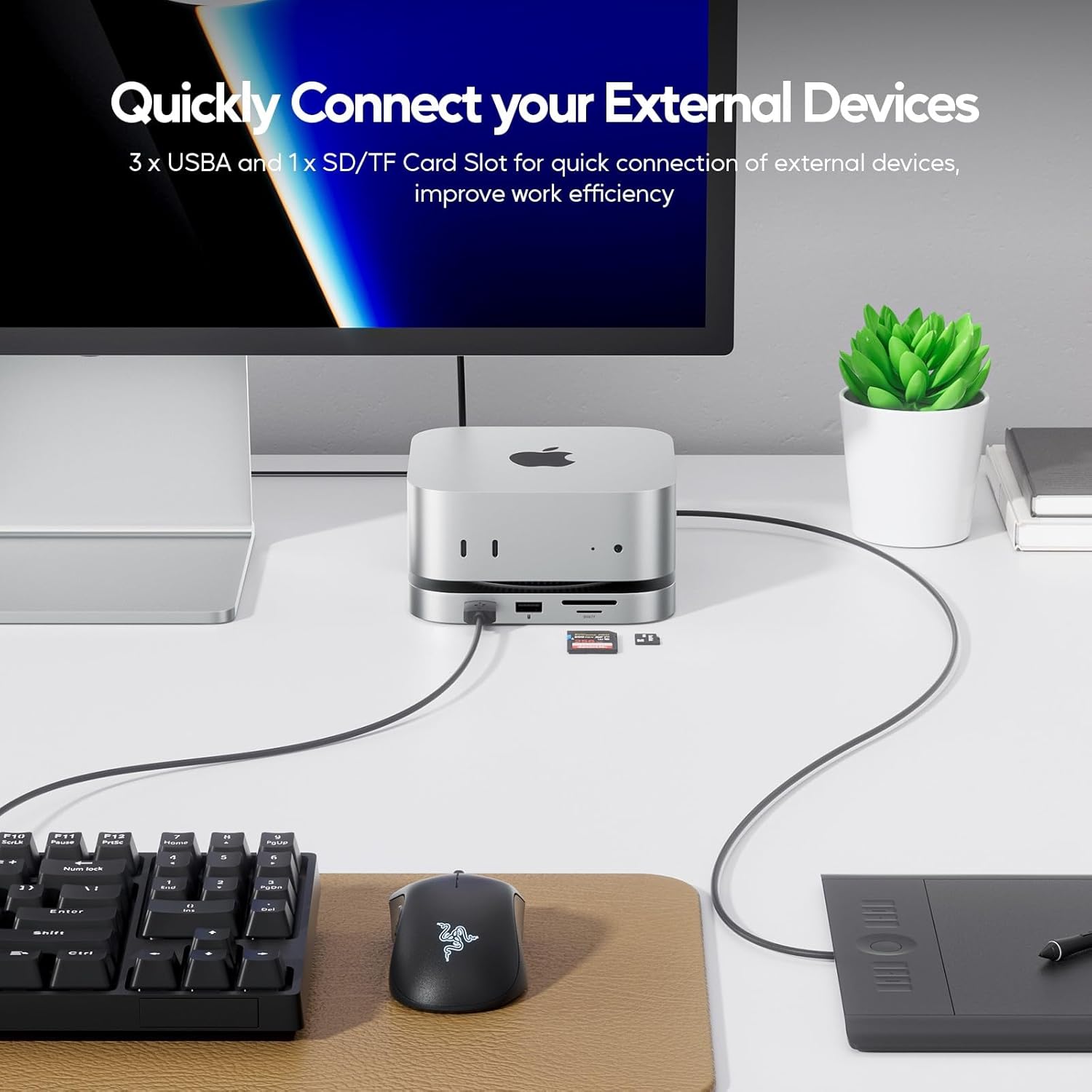

USB-A PORTS COMPATIBILITY – The mac mini m4 dock boasts 3 x USB A 2.0 ports, which do not interfere with the Mac Mini’s WIFI and Bluetooth signals and allows you access mouse, keyboard, and other USB A peripherals effortlessly and no-delay, while the SD/ Micro SD Card readers and 3.5mm Audio/Mic jack to enhance your mac mini m4 dock experience. ★NOTE: 1) The design with ONLY USB 2.0 ports is to solve the issues of WiFi interference and signal quality; 2) ALL of the USB A ports ONLY support data transfer, DO NOT support charging
EXCLUSIVE DESIGN – Made of aluminium and finished with sleek and slim construction, rounded edge and corner notch design, making the usb-c Mac Mini M4 dock to feel like a natural extension of your Mac Mini M4 2024 and easy to access to the power button on the bottom of the Mac mini M4/M4 Pro. The anti-slip ring and 4 anti-slip silicone pads are applied to keep your mac mini stable on the desktop. Compatible with Mac Mini M4/ M4 Pro, 2024 Mac Mini
Original price was: $89.99.$53.89Current price is: $53.89.
