Product description
This 5MP global shutter camera boasts a 195° ultra-wide fisheye lens for full panoramic shooting.

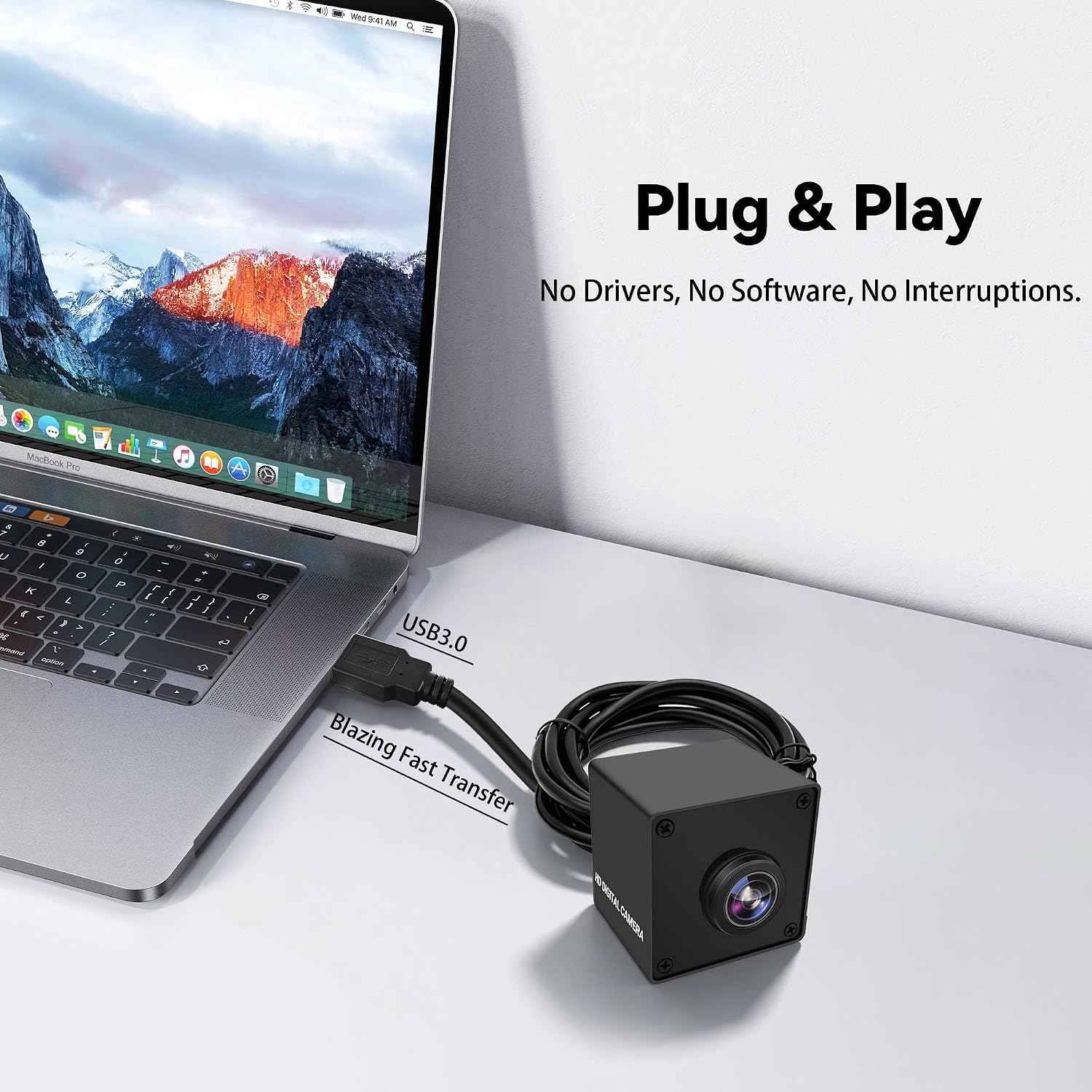

USB3.0 plug-and-play design ensures fast stable transmission for industrial vision tasks.
Ultra HD & 60fps Smooth Capture
Boast native max 5MP resolution of 2592(H)×1944(V). Capture richer textures and intricate details to produce crisp, true-to-life vision images.
Hit a maximum smooth frame rate of 60fps with global shutter design. Avoid motion skew and blurring to deliver crisp shots of high-speed moving objects.
Boasting an expansive 195° horizontal field of view for seamless full-are monitoring with fewer blind sports. Covers a far larger space than standard narrow-angle cameras.
Captures complete panoramic scenes perfectly. Retain consistent clarity across the entire wide frame.
Premium Global Shutter Sensor
Equipped with OmniVision OG05B10 sensor in 1/2.5″ optical format, it delivers 106dB wide dynamic range for balanced light performance.

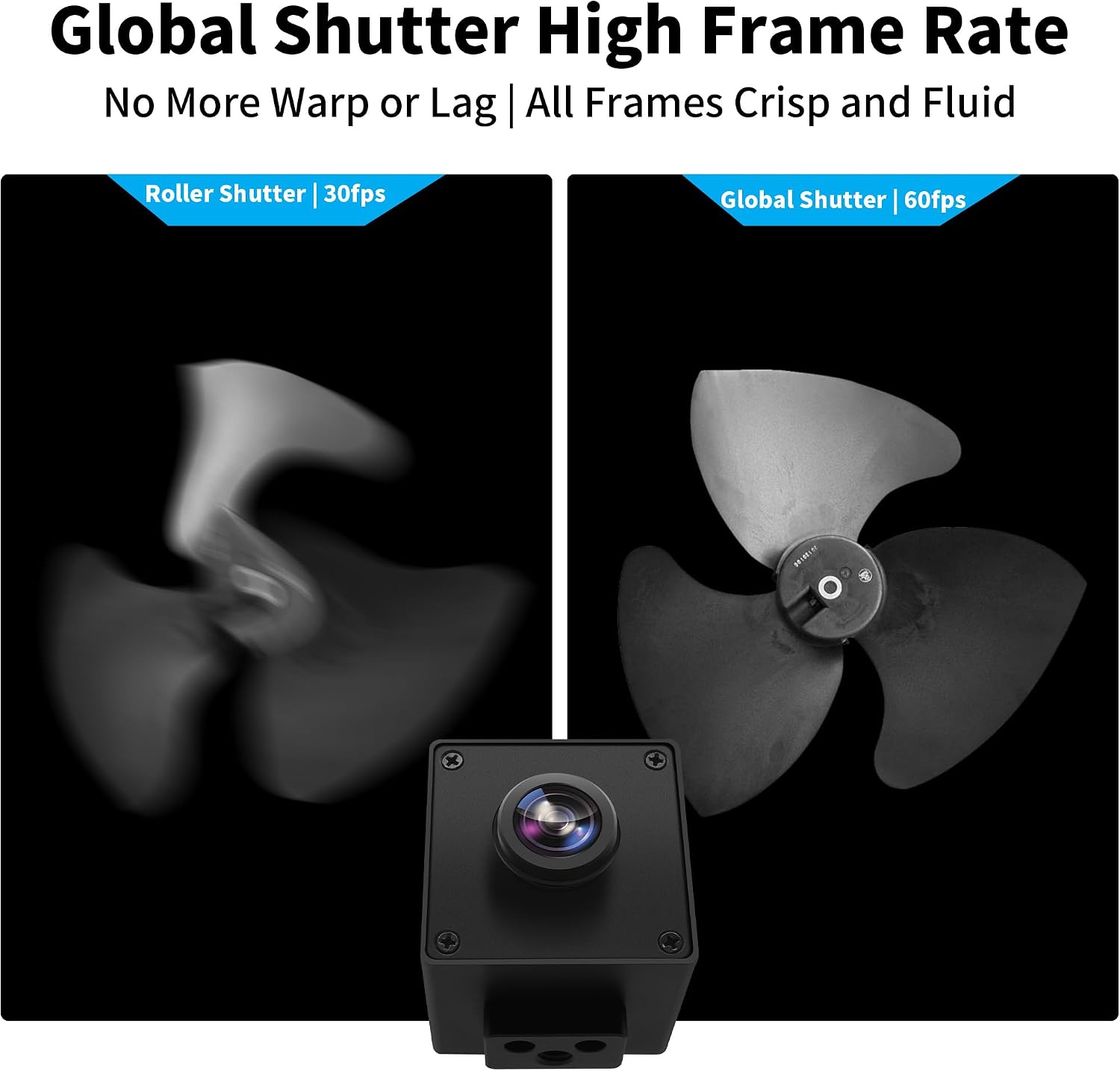

Global shutter structure eliminates motion distortion, producing clear, stable frames for industrial vision and high-speed capture tasks.
Stable High-Speed Connection | Full Versatility
USB3.0 Transmission
USB 3.0 interface delivers far faster data transfer speed than USB 2.0, supporting smooth high-frame-rate video output without lag.
20-Pin Stable Connector
Equipped with an integrated 20-pin connector for tight, secure wiring connection and long-term stable operation.
Wide Compatibility
Works seamlessly with Windows, macOS, Linux, Android and Raspberry Pi, compatible with Amcap, OpenCV, FaceTime, CameraFI and more.
Diversified Application
Perfect for machine vision, traffic monitoring, store counting, equipment inspection, robot vision and elevator surveillance.
Product Specifications
Model U3GS05B10C-TKL185 Sensor 1/2.5” OmniVision OG05B10 Max. Resolution 2592 (H) *1944 (V) Resolution&Frame Rate MJPEG: 2592×1944@60fps, 2048×1536@60fps, 1600×1200@60fps, 1920×1080@60fps, 1280×720@60fps, 640×480@60fps YUY2: 2592×1944@35fps, 2048×1536@50fps, 1600×1200@60fps, 1920×1080@60fps, 1280×720@60fps, 640×480@60fps Connecting Port Type USB 3.0 Lens Parameters 195 Degree Fisheye Lens Compression Format MJPEG / YUV2 (YUYV) Shutter Type Global Shutter Minimum illumination 0.1lux Pixel Size 2.2μm x 2.2μm AEC/AWB/AGC Support Working Temperature -10°C to 70°C Storage Temperature -20°C to 80°C Operating System Request Win10/Win11 etc. Linux with UVC (above linux-2.6.26), AC-OS X 10.4.8 or later, Android 4.0 or above with UVC Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure Package Included 1x 5MP USB Camera, 1x 2 Meters USB Cable, 1x User Manual
U3GS05B10C-TKL185
Global Shutter USB Camera
Monochrome
Free Drive Protocol
Plug&Play
2592 (H) *1944(V)
Max. Resolution
1280(H) *800(V)
60fps
Max. Frame Rate
210fps
195 Degree Fisheye
Lens
Manual Focus 5-50mm
USB 3.0
USB Type
USB 2.0
Monochrome
Free Drive Protocol
Plug&Play
2592 (H) *1944(V)
Max. Resolution
1920(H) *1200(V)
60fps
Max. Frame Rate
90fps
195 Degree Fisheye
Lens
200 Degree Fisheye
USB 3.0
USB Type
USB 2.0
USBGS800P03-MFV(5-50)
USBGS1200P01-L180
5MP High Resolution Imaging: Powered by the OmniVision OG05B10 sensor, this camera delivers crisp 2592×1944 resolution imagery. The large 1/2.5‑inch optical format captures ample light, producing vivid colors and fine texture even in dim environments. Every pixel retains rich detail, making it ideal for applications where image fidelity and clarity are paramount.
Global Shutter for High‑Speed Capture: The built‑in global shutter eliminates rolling‑shutter artifacts, ensuring that fast‑moving subjects appear sharp and geometrically correct without skew or wobble. Combined with up to 60 frames per second, the camera renders smooth, natural motion with minimal latency, giving you reliable visual feedback for dynamic scenes and real‑time analysis.
Ultra‑Wide 195° Fisheye Lens: Equipped with a 195‑degree fisheye lens, this camera offers an exceptionally broad field of view, reducing blind spots and covering large areas with a single unit. Whether mounted on ceilings, vehicles, or robotic platforms, it provides comprehensive situational awareness and is perfect for surveillance, immersive monitoring, and space‑constrained installations.
USB 3.0 & 20‑Pin Internal Interface: Featuring USB 3.0 output and a Type‑C connector, the camera ensures high‑speed data transfer and stable power delivery, eliminating dropped frames even at maximum resolution. The integrated 20‑pin interface allows flexible hardware integration for embedded systems, while true UVC compliance guarantees plug‑and‑play operation. No manual driver installation required across multiple operating systems.
Broad Application & Compatibility: Ideal for machine vision, industrial inspection, security surveillance, robotics navigation, and smart traffic systems. The camera seamlessly works with Windows, Android, Linux, macOS, and Raspberry Pi, offering developers and integrators a versatile imaging solution that adapts to diverse project needs without compatibility concerns.
$182.99
