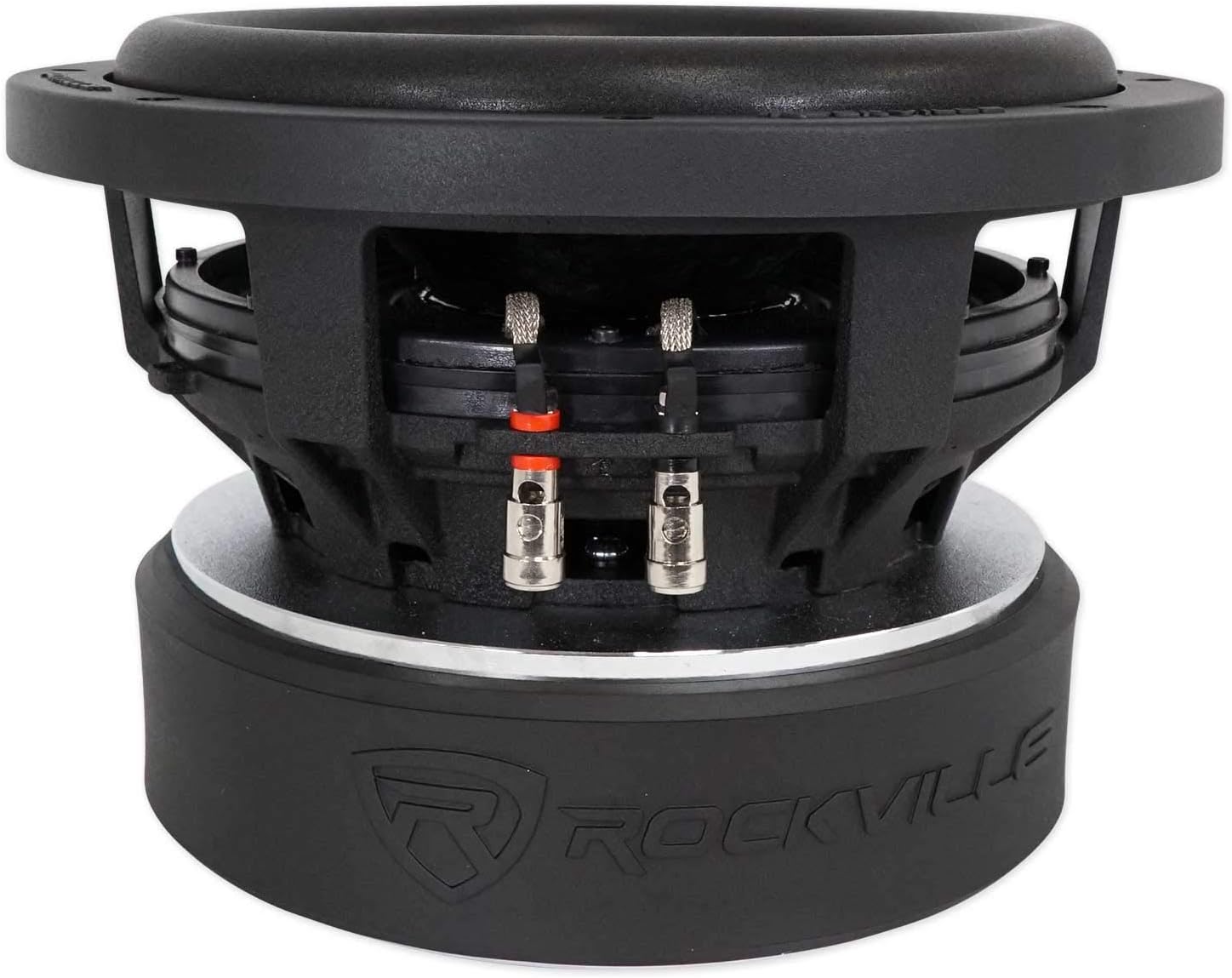

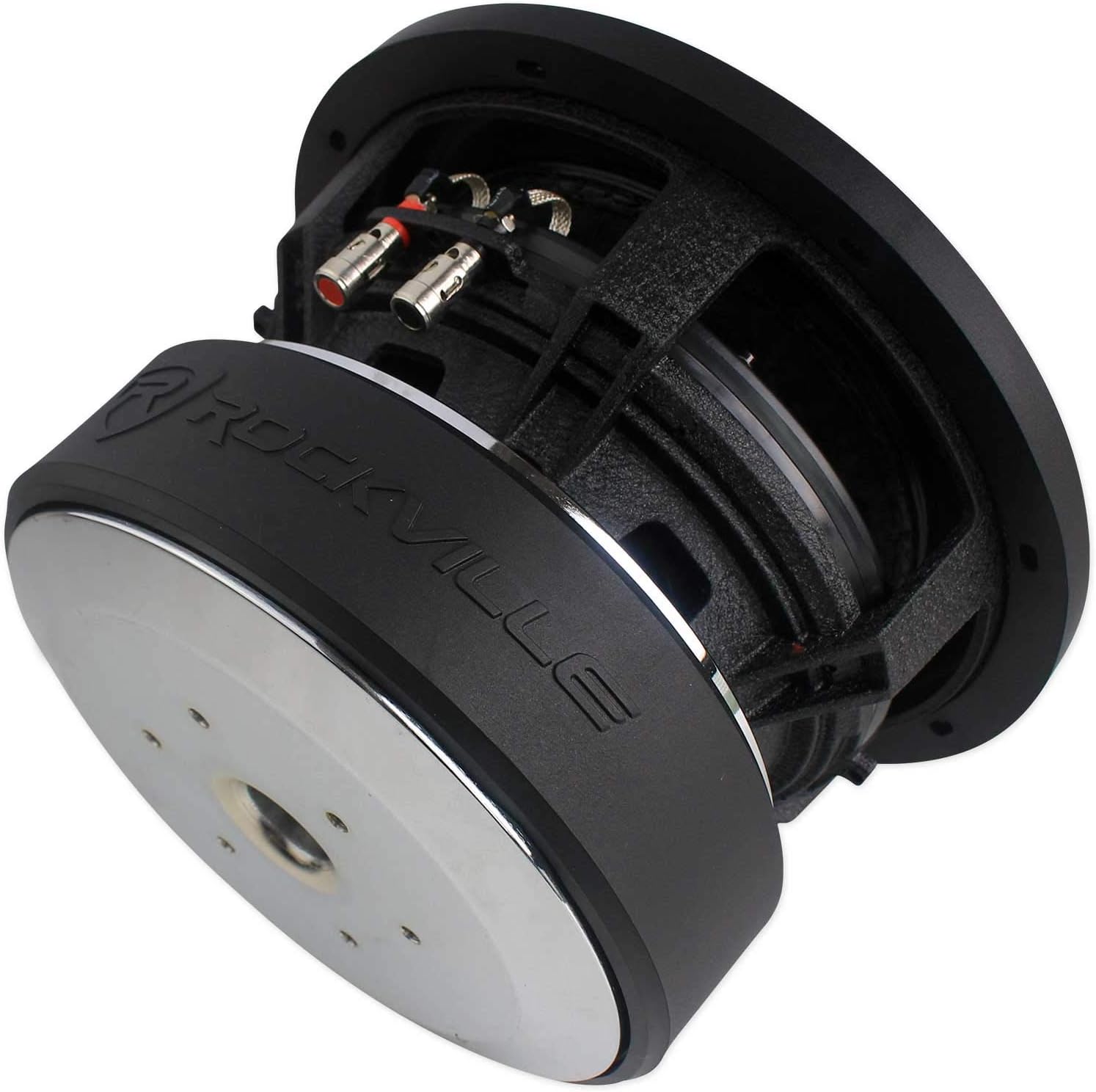

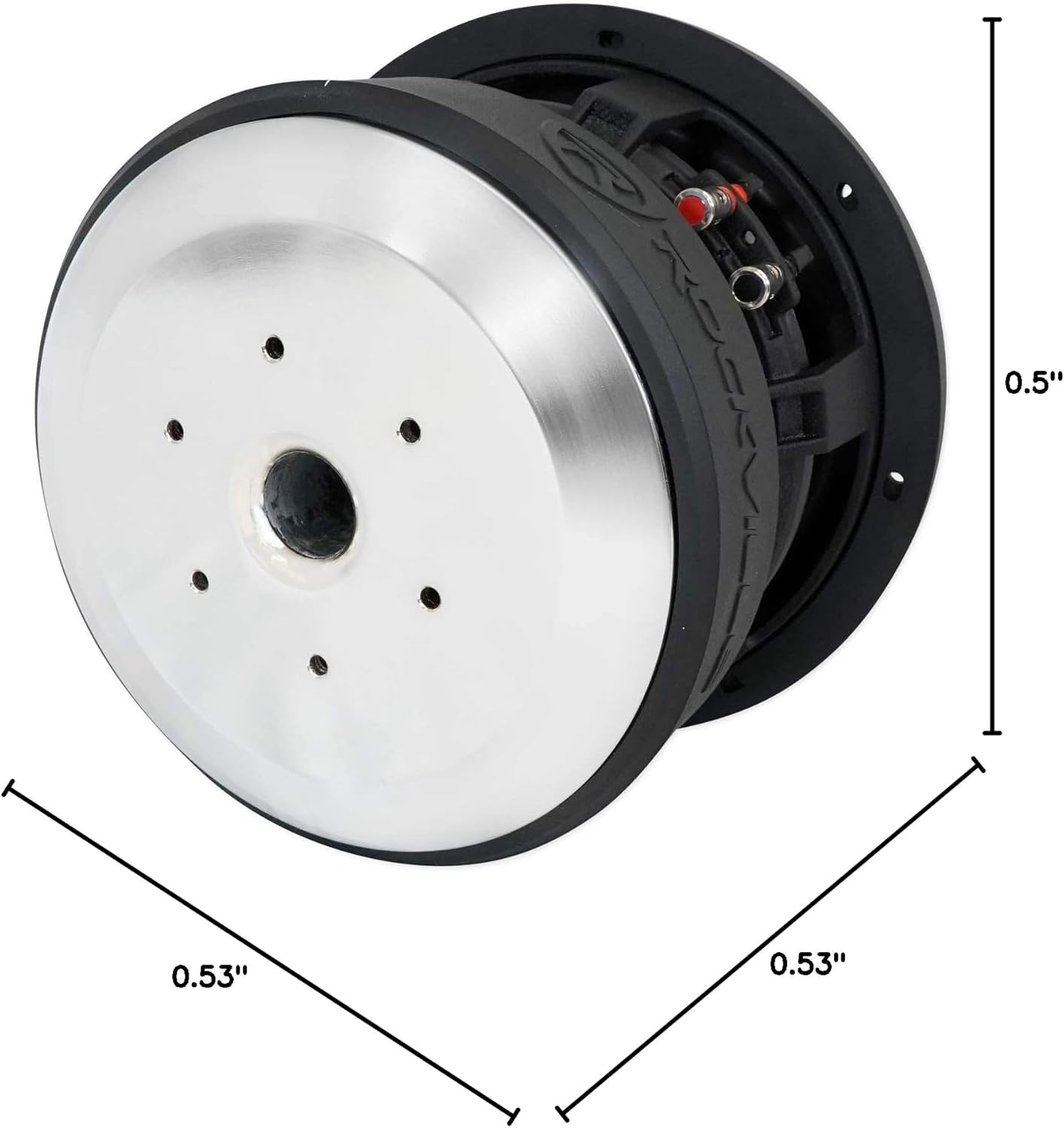

Rockville Punisher 10D1 5000W Peak Subwoofer, 3″ Voice Coil, Dual 1-Ohm, 1250W RMS, 246 Oz Magnet, Deep Bass, for Car Audio

Product description

Rockville Punisher 10D1 10″ 4800w Competition Car Audio Subwoofer Dual 1-Ohm Sub

Features:

Rockville PUNISHER Series 10″ Dual 1-Ohm Car SubwooferPeak Power Handling: 5000 WattsProgram Power Handling: 2500 WattsCEA Rated RMS Power Handling: 1250 Watts3″ 4-Layer Black Aluminum Voice Coil Former Wound with OFC WireThis voice coil is stable up to 250 degrees celsius! The voice coil windings are made in the USADouble Stacked 246 Oz Y35 MagnetCast Aluminum Basket With Black Sanded FinishTwo Chrome-Plated Binding Post TerminalsBlack Non-Pressed Paper ConeUltra-Stiff cone is extremely thick and strongThick Foam Surround Provides Incredible Sound Quality With Minimal DistortionBlack stitching reinforces the cone and ensures long lifeNew Ultra-stiff PolyPropylene (PP) Dustcap is 0.9mm thick (Extremely, thick, beefy, and stiff)Oversized aluminum heatsink ring keeps the voice coils cool by absorbing and dissipating heatExtra thick T-yoke and washers assist in keeping the voice coils cool by absorbing and dissipating heatThis series was engineered from the ground up to keep the voice coils cool so that even if you play test tones for long periods of time in a competition atmosphere the sub can handle itImpedance: Dual 1-Ohm Voice CoilsVented Holes on T-yoke Enhances Heat DissipationCustom Rubber Boot Magnet CoverCustom Rockville Mounting Gasket makes it Easy To Mount the Subwoofer Air-TightHigh BL Magnetic Motor GapWe use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated3 layer spider made with thick gauge material that is resistant to tearing even at extreme SPL levelsEasy to install recone kits are availableCutout Diameter: 10.04inchesMounting Depth: 6.69 inchesFrequency Response: 30.444 Hz – 500Hz15mm T-Yoke + 12mm Washer

Sensitivity: 82.7dBSealed Enclosure Volume: 0.88 -1.41Cubic FeetVented/Ported Enclosure Volume: 1.6-2.12Cubic Feet1-Way XMAX: 27 MM2-Way XMAX: 54 MMWeight: 37.49 lbs.Shipping Weight: 39.69 lbs.Shipping Box Dimensions: 13.58″ x 13.58″ x 12.6″ Inches

Detailed Info:

Body: Non-Pressed PaperGap Plate Inside Diameter: 84.1mm (3.31 inches)Gap Plate Outside Diameter: 210mm (8.27 inches)Gap Plate Thickness: 12mm (0.47 inch)Yoke Outside Diameter: 210mm (8.27 inches)Yoke Thickness: 15mm (0.59 inches)Yoke Pole Diameter: 75mm (2.95 inches)

TS Parameters:

Series

Fs: 30.444 HzQms: 2.626Cms: 0.087878 mm/NBl: 19.326N/AZmin: 5.1493 ΩRe: 2 Ω ±0.2 ΩQes: 0.319Mms: 311.003 gdBspl: 82.7Sd: 330.006 cm²Qts: 0.284VAS: 13.594 L / .47 cu ft

Parallel

Fs: 28.682HzQms: 2.218Cms: 0.103076 mm/NBl: 9.814 N/AZmin: 2.6922 ΩRe: 0.5Ω ±0.2 ΩQes: 0.279Mms: 298.727 gdBspl: 83.2Sd: 330.006 cm²Qts: 0.248VAS: 15.945 L / .47 cu ft

HIGH-POWER AUDIO PERFORMANCE: Delivers 5000W peak power and 1250W RMS for impactful bass, ideal for competition-level car audio systems.
DUAL 1-OHM CONFIGURATION: Flexible wiring options for powerful setups, maximizing compatibility with high-performance amplifiers.
PREMIUM BUILD & COOLING TECHNOLOGY: Features a 3″ 4-layer OFC voice coil rated to handle temperatures up to 250 degree C, reinforced with a 246 Oz Y35 magnet, and a high-performance aluminum ring for heat dissipation.
DEEP, PRECISE BASS: Engineered for low-frequency response, producing clear, resonant lows for music genres like hip-hop, EDM, and rock.
COMPETITION-READY DESIGN: CEA-2006 compliant, built for car audio enthusiasts seeking superior sound in custom installations.
