Product description
Smart Door Access Control System with 1200lbs Magnetic Lock, Tuya App Remote Unlock
Features
This is a comprehensive security solution designed to provide protection for your premises.Complete Access Control System for a full setup.Smart Tuya App Control: Connects to 2.4G WiFi and works with the Tuya App for remote door unlocking.Multiple Unlock Methods: Supports password, 125KHz ID cards, 13.56MHz IC cards, mobile app, remote control.Users can easily exit the room using the exit button located inside.User Management: Add or delete users, set temporary passwords, and manage access permissions directly from Tuya app.Access Records & Logs: View door opening history and activity records anytime through the Tuya App.Doorbell Function: Integrated doorbell button allows visitors to ring, alerting people inside to unlock the door.Backlit Physical Keypad: Raised tactile buttons with luminous backlight for easy operation, even at night.High-Strength Magnetic Lock: 1200lbs holding force electromagnetic lock provides strong, stable, and secure door locking.Remote Control Included: Comes with 2-button remote controls for convenient door open and close operation.Its user-friendly design makes it simple to operate, saving you time and hassle.This system is highly effective in preventing unauthorized entry for residential or commercial use.

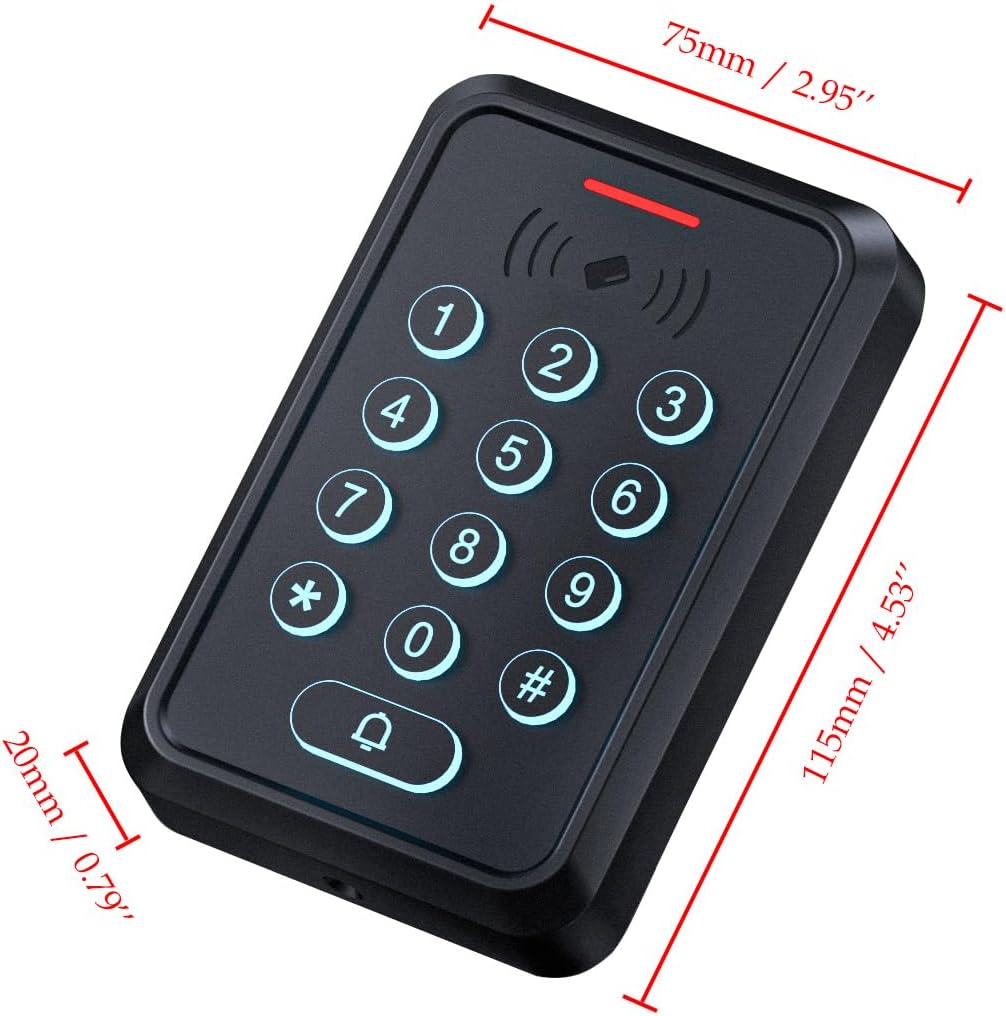

Access Control Keypad
Operating Voltage: 12V DCCapacity: 2000 usersWaterproof IP68 for both outside & inside useAccess Way: Pin, Card, Pin+ Card, Smartphone Tuya AppCard Type: Both ID Card 125KHz EM & IC Card 13.56MHz MFShell Material: PlasticDoor Relay Time: 0-99 seconds (Adjustable)Working Temperature: -45°C-60°C / -49°F-140°FSupport 2.4 GHz Wi-Fi (not 5G Wi-Fi)Shell Size: 75 x 115 x 20mm (2.95″ x 4.53″ x 0.79″)
1200lbs Magnetic Lock
Cover Finish: Anodized aluminumLock Finish: ZincArmature Plate Finish: ZincInput Voltage: 12V DCCurrent: 12V/480mAHolding: 500kg / 1200LbsFail safe: Unlocked while power is removed (NC Mode)Size (L x W x H): 265 x 75 x 39 (mm) / 10.43x 2.95 x 1.54 (inch)Armature Plate Dimension (L x W x H): 185 x 60 x 13(mm) / 7.28 x 2.36 x 0.51 (inch)
Caution
Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.If your need to install this lock on a inswinging door, you can buy our Z and L bracket ASIN B0BKQHYMTM
Power Supply Control
Input Voltage: AC110-240V
Input Frequency: 50-60Hz
Output Voltage: 12V DC / 4A
Enclosure Material: Aluminum alloy
Operating temp: -20℃~+45℃(-4℉-113℉)
Time Delay: 0-15s
Dimensions (Lx W x H): 3.54″ x 3.54″ x 1.38″
Weight: 0.3kg / 0.67lb
Doorbell Chime
Features a bell sound
No battery needed
Volume of doorbell: 90db
Working Voltage: DC12V
Dimension: 2.44″ x 3.43″ x 0.87″
Wire Connection Mode: Red: + 12 V; Black: GND; Green: BELL1; Yellow: BELL2
Material: ABS fire retardant material
Push to Exit Button
Plastic Panel with Elegant Style
Tested to 100000 Cycles
Two Contact Output: NO, COM
Dimensions: 3.4″ x 3.4″ x 0.87”
Mechanical Life: 500000 tested
Panel Material: Hard Plastic
Weight: 0.07kg / 0.15lb
Remote Receiver
Operating Voltage: 12V DC
Receiving Range: 328ft (Open space)
Operating Mode: Momentary/ Toggle/ Latched/Delay mode
RF Frequency: 433MHz
Transmitter Support: Max 35
Output Terminals: NO/NC/COM
Connectors: 5 screw Terminal
Case Construction: ABS Plastic
Remote Transmitter
Power Source: CR2016 Battery Operated
Number of Batteries: 2
Service Life of the Battery: 50000 cycles
Transmitting Frequency: 433MHz
Number of Buttons: 2
Emission Distance: 100m/328ft
Encoding Type: Fixed code
Enclosure Material: ABS Plastic
Package List
1 x Access control keypad
1 x 1200LBS electric magnetic lock
1 x Power supply control
1 x Push to exit button
1 x Doorbell Chime
2 x Remote Transmitter
1 x Remote Receiver
5 x RFID ID keyfobs
1 x English user manual
Wiring Diagram
[All-in-One Access Control Kit] – Complete door entry system includes access control keypad, 500KG (1200lbs) magnetic lock, power supply controller, exit button, wired doorbell, and two remote controls – everything you need for secure and convenient door management.
[Dual Frequency Card Support] – The keypad supports both 125KHz ID cards and 13.56MHz IC cards, offering compatibility with multiple access types and flexibility for different users.
[WiFi & Tuya Smart App Control] – Connects easily to the Tuya Smart App via 2.4G WiFi. You can remotely unlock doors, add or delete users, set temporary passwords, and check access records anytime from your smartphone.
[Durable Waterproof Design (IP68)] – Built with high-strength ABS housing and IP68 waterproof rating, this outdoor access controller works reliably in rain, dust, or harsh environments. Ideal for gates, offices, apartments, or warehouses.
[Multi-Access Options & Doorbell Integration] – Unlock using PIN code, card, remote control, or smartphone App. Features a built-in doorbell button so visitors can ring from outside -perfect for home or business security setups.
$139.99
