Smart Door Access Control System with Tuya APP Remote Video Intercom & Monitoring, Built-in Camera, 1200lbs Magnetic Lock, IP68 Metal Keypad, Fingerprint/Password/ID Card Unlock

Product description

Smart Video Intercom Access Control System with Fingerprint & 1200lb Magnetic Lock

Features

All-in-One Access Control Kit: Includes metal access keypad, power supply, 1200lb magnetic lock, and stainless steel exit button.Built-in Video Intercom Camera: See, talk to, and unlock the door for visitors remotely via Tuya App.Tuya Smart App Control: Manage users, unlock remotely, and monitor door activity anytime, anywhere.Multiple Unlock Methods: Supports fingerprint, PIN code, and 125kHz ID card access.Real-Time Live View: Check live video of the entrance and capture photos or videos from the app.IP68 Waterproof Metal Access Panel: Durable metal housing for reliable outdoor and indoor installation.Remote Doorbell Video Call: Get instant video calls when visitors press the doorbell button.1200lb Holding Force Magnetic Lock: Strong and secure electromagnetic lock for enhanced door security.Stainless Steel Push to Exit Button: Waterproof design with LED indicator for easy and safe exit.

Access Control Keypad

Operating Voltage: DC 12V-24VRFID Card/ Password Capacity: 10,00Fingerprint Capacity: 200Semiconductor fingerprint sensorCard type: 125KHz EM CardWaterproof: Yes, IP68 Waterproof for Outdoor UseShell Material: Metal CaseOperating Temperature: -25℃～+55℃ (-13℉-131℉)Shell Size: 145 x 70 x 25mm (5.71″ x 2.76″ x 0.98″)Support 2.4 GHz Wi-Fi (not 5G Wi-Fi)

1200lbs Magnetic Lock

Cover Finish: Anodized aluminumLock Finish: ZincArmature Plate Finish: ZincInput Voltage: 12V DCHolding: 500kg / 1200LbsFail safe: Unlocked while power is removed (NC Mode)Size (L x W x H): 265 x 75 x 39 (mm) / 10.43x 2.95 x 1.54 (inch)Armature Plate Dimension (L x W x H): 185 x 60 x 13(mm) / 7.28 x 2.36 x 0.51 (inch)

Caution for Magnetic Lock

Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.If the door frame thickness is less than 2.36 inch or your need to install this lock on an inswing door, you can buy our Z and L bracket ASIN B0BJF42MDP.

Power Supply Control

Input Voltage: AC110-240V

Input Frequency: 50-60Hz

Output Voltage: 12V DC / 4A

Enclosure Material: Aluminum alloy

Enclosure Color: Black

Time Delay: 0-15s

Operating temp: -20℃~+45℃(-4℉-113℉)

Dimensions (Lx W x H): 3.54″ x 3.54″ x 1.38″

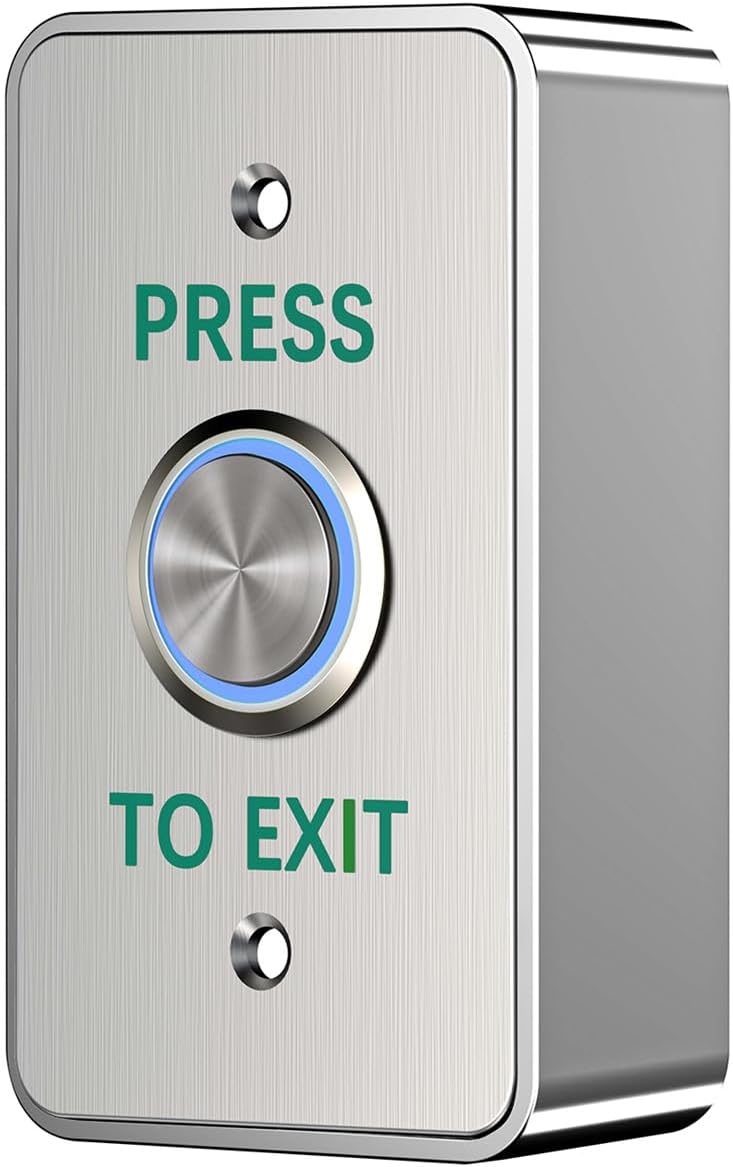

Push to Exit Button

Material: 304 Stainless Steel

IP68 Waterproof

Dimensions: 3.39L x 1.97D x 1.02H (inch)

Back Box Included

Mechanical Life: 500,000 tested

Output Contact: NO/NC/COM

LED Color Indicator Light: Blue

Operating Temp: -20℃～+55℃ (-4℉-131℉)

Package List

1 x Access control keypad

5 x ID cards

1 x 1200LBS electric magnetic lock

1 x Power supply control

1 x Push to Exit button

1 x English user manual

Wiring Diagram

[3-in-1 Unlocking + Tuya Smart APP Control] Metal access keypad supports fingerprint, password, and 125KHz ID card unlocking. Connects to the Tuya Smart APP for remote door control, user management, log checking, and instant notifications anytime, anywhere.
[Built-in Camera with Video Intercom & Real-Time Monitoring] Equipped with an integrated HD camera. When a visitor presses the doorbell button, you can start two-way video intercom directly from the APP and remotely unlock the door. Also supports real-time live view, photo snapshot, and video recording.
[Heavy-Duty 1200lbs Magnetic Lock for High Security] Includes a 1200lbs holding force magnet lock, ideal for homes, offices, warehouses, gates, and commercial buildings. Ensures reliable locking for indoor and outdoor installations.
[IP68 Waterproof Metal Keypad for Outdoor Use] Durable metal housing, IP68 rated, built for harsh outdoor environments. Backlit keypad ensures clear visibility at night, providing stable performance in rain, dust, heat, or cold.
[Waterproof Push to Exit Button – Surface or Flush Mount] Stainless steel waterproof exit button with LED indicator. Supports surface mount or flush mount (remove back box). Ideal for gates, fences, offices, and security access points.
