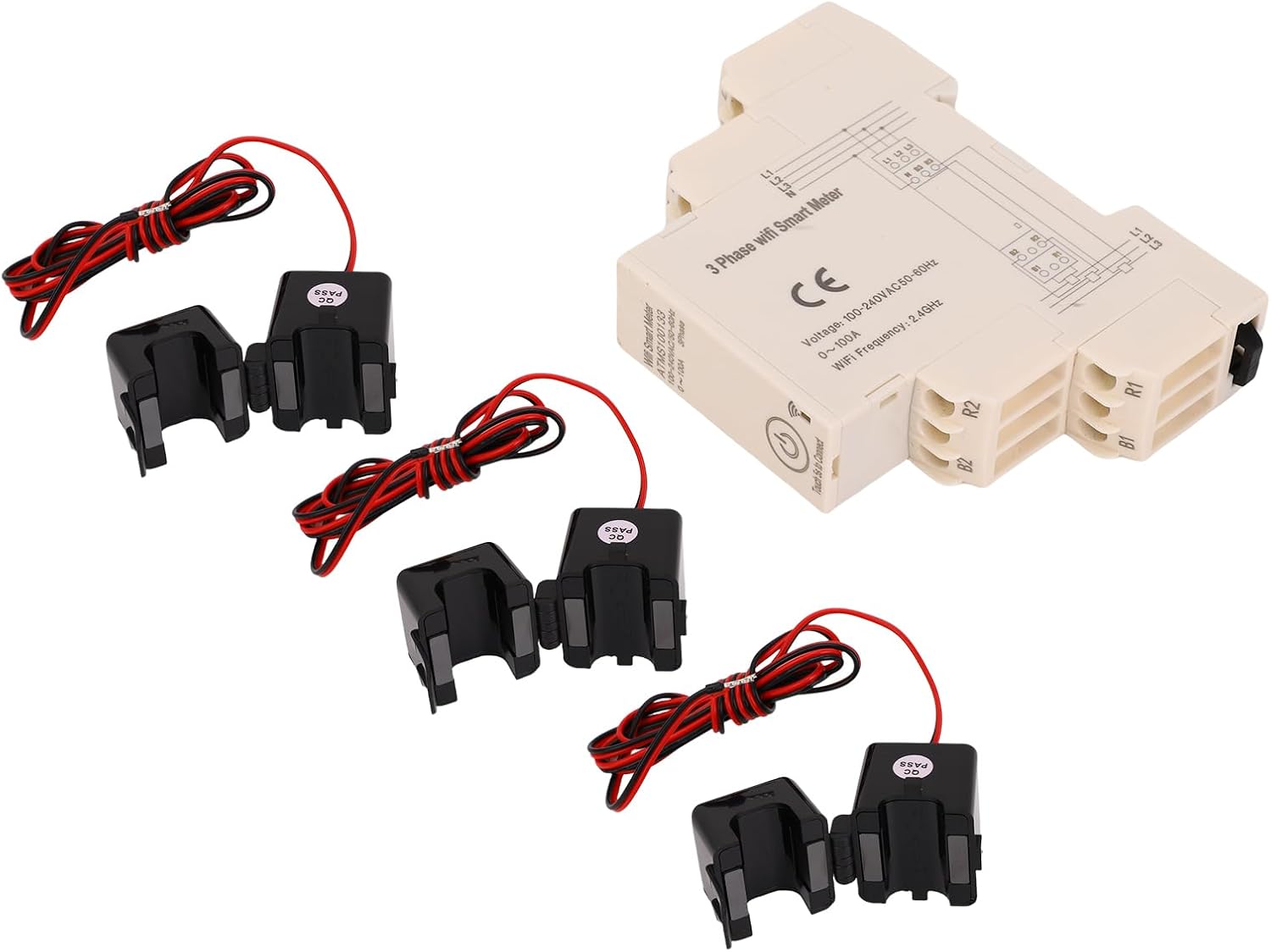

Smart WiFi Energy Meter, Three Phase Monitoring with 100A Sensors

1. [HIGHLY ACCURATE ENERGY MONITORING] Ensure precise measurement with a 1% accuracy range and three 100A current sensors for detailed power consumption analysis.
2. [REMOTE ENERGY CONTROL VIA WIFI] Seamlessly connect to your devices through 2.4GHz WiFi for real-time monitoring and control of energy usage from anywhere using the mobile app.
3. [EXTENSIVE DATA EXPORT OPTIONS] Easily export power consumption data in hourly, daily, weekly, monthly, and yearly formats, with permanent access to day, month, and year data via the app.
4. [THREE-PHASE POWER MONITORING] Monitor and track three-phase power consumption accurately for appliances like air conditioners, stoves, and water heaters with ease.
5. [EASY INSTALLATION] Conveniently set up the energy meter on a 35mm DIN rail for use with single-phase, split-phase, and three-phase electrical systems.
Spec:
Item Type: Smart WiFi Energy Meter
Material: ABS
Model:
WIFI: 2.4GHz
Operating Range: (0.8…1.1) UN
Rated Power: 2.2VA/0.7W
Current Range: 0-100A
Ambient Temperature Range: -20℃ to +60℃
Installation: DIN Rail 35mm (EN 60715)
Application: Home, School, Dormitory, Shopping Mall, Hotel, Factory, etc.
Features:
1. Display on the APP: Total Active Energy (kWh), Forward Active Energy (kWh), Reverse Active Energy (kWh), Total Active Power (kW), Total Reactive Power (kVar)
2. Total Power Factor: Each Phase: Current (A), Voltage (V), Power (W)
3. Share electricity with 20 users via mobile APP
4. Real time detection of bidirectional metering data
How to Use:
Directly install and use.
packing list:
1 x Smart WiFi Energy Meter
3 x Current Sensors
1 x User Manual

[Energy Accuracy Within 1%] Track power consumption with precise monitoring backed by a 1% accuracy rate and three 100A current sensors. The whole-home electricity usage monitor captures detailed data across every phase so you can identify high-consumption appliances and optimize energy usage with confidence.
[Full Remote Control via WiFi] Connect the smart power meter to your 2.4GHz WiFi network and view real-time energy data from anywhere through a dedicated mobile app. With remote power monitoring and control, you can stay on top of electricity usage at home, school, or work without being on site.
[Three Phase Monitoring] Monitor single-phase, split-phase, and three-phase electrical systems to track usage levels for appliances like air conditioners, stoves, and water heaters. The energy monitor provides a clear per-phase readout of current, voltage, and power so you can balance loads and manage power consumption more effectively.
[Data Logging and Export] Analyze daily usage trends with downloadable hourly, daily, weekly, monthly, and yearly reports at your fingertips. The app keeps permanent access to day, month, and year history, making it easier to power demands and fine-tune your energy habits over time.
[Simple Setup and Sharing] Mount the DIN rail WiFi energy meter on a standard 35mm rail (EN 60715) for quick installation in most residential or light commercial panels. Share live energy readings with up to 20 users through the app, making this an ideal choice for property managers, facility teams, and energy-conscious households.
