TL88 Handheld Fish Finder with LCD Display and Portable Sonar Sensor – Depth Finder for Lake River and Sea – Round Transducer with 25 Foot Cable – Detects Water Depth and

Features:
Sensitive: The sensitivity can be adjusted freely according to the depth of water.
Detect and display water depth, approximate fish location, fish size, short & tall weeds, sand & rocks on seabed. Setting can be saved when turned off.
Apply to lake, river, sea and other fishing environment. Depth range from 1M to 100m. NOTE: The depth is measured from the sonar sensor, not the float.

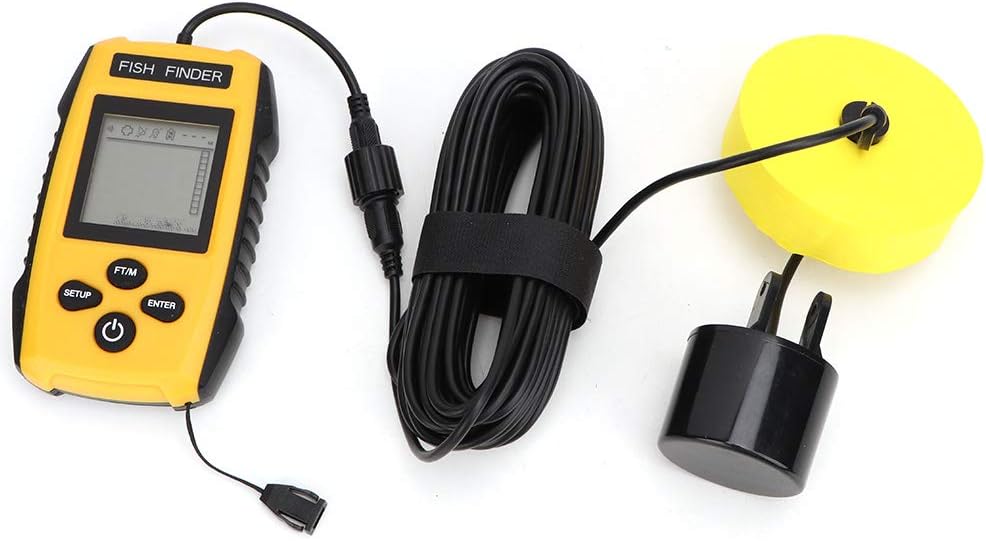

Round transducer with cable and removable transducer float. Can be used for fishing off the dock, on a boat, and ice fishing.
Various features settings: 5 user selectable sensitivity; battery save mode; backlight mode; fish alarm; unit of measure. Water depth shows by meters/feet.
Specifications:
Condition:100% Brand New
Color: As shown in the picture
Measure Units: Meters / Feet
Display: LCD
Backlighting: LED
4.6cm diameter Round transducer sensor
Depth Range : maximum: 100m (328ft) ; Minimum: 0.9m (3ft)
Sensor Beam Angle: 45 degrees
Display the nature or circumstance of bottom of Sea (i.e. grass, rock and sand)
Operating Temperature is from -10°C to 45°C (14°F to 113°F)
Battery: Uses 4*AAA batteries (Not included)
How to use the Sonar Sensor:
1. Toss the sensor and float into the water;
2. Attach the Side-Scan Adapter to the boat hull using the mounting tabs;
3. Attach the sensor to a handle, lower the sensor into the water.
Package List:
1*Fish Finder
1*Instruction Manual
1*Lanyard
1*Fixing Screw
1*Fixing Frame
1*Sensor
Note:
1. It will turn off automatically if the depth display reads “—” continuously for 5 minutes.
2. The transmitter is , but the receiver (unit with screen) is not , so please do not submerge or spray the fish finder screen with water.
3. It can not be used to detect bait fish(motionless) or fish that is smaller than
Detection Capabilities: The sonar sensor detects and displays water depth ranging from 1 meter to 100 meters. The display identifies approximate fish location, fish size, and seabed features including weeds, sand, and rocks.
Hardware Components: This handheld device includes a round transducer equipped with a 25 foot cable and a removable transducer float. Depth measurements are calculated from the sensor position rather than the float.
Operational Environments: Suitable for use in lakes, rivers, and seas. This portable sonar device is designed for fishing from docks and boats, as well as ice fishing applications.
Adjustable Settings: Features 5 user selectable sensitivity levels to account for varying water depths. The interface includes a backlight mode, fish alarm, and battery save mode for efficient operation.
Data Management and Units: Measurement units are selectable between meters and feet. Integrated memory saves user settings when the device is powered off to maintain configuration during subsequent use.
