Tuya Smart Door Access Control System Kit, Waterproof Keypad Door Entry with 1200lb Magnetic Lock, Remote Control & App Unlock, Doorbell for Home & Office

Product description

Access Control System Kit with IP68 Waterproof Keypad, 1200LB Magnetic Lock Remote Controls and Tuya App Access

Features

This is a complete set of door access control system with magnetic lock kit.Constructed from IP68-rated stainless steel, the keypad features physical buttons with night glow for dark environments.Supports ID card access, password entry, Tuya App unlock, and remote control operation, giving you convenient options.Manage users, control access, and unlock doors remotely via the Tuya App from your smartphone.Large Capacity User Management: Stores up to 2,000 users – deal for offices, residential buildings, warehouses, and more.Powerful 1200lb electromagnetic lock ensures your door remains securely locked under high holding force, enhancing safety.Both the keypad and stainless steel exit button feature waterproof construction, suitable for both indoor and outdoor installations.The push-to-exit button supports surface mount (wall box included) and flush mount, making installation easy in various scenarios.Comes with two pre-configured remote controls, allowing keyless entry from a distance – perfect for deliveries or staff access.When visitors press the doorbell button on the keypad, an audible “Ding Dong” alert sounds inside, ensuring you never miss a guest.Ideal for homes, offices, or commercial spaces, this system offers reliable, customizable security solutions for various needs.

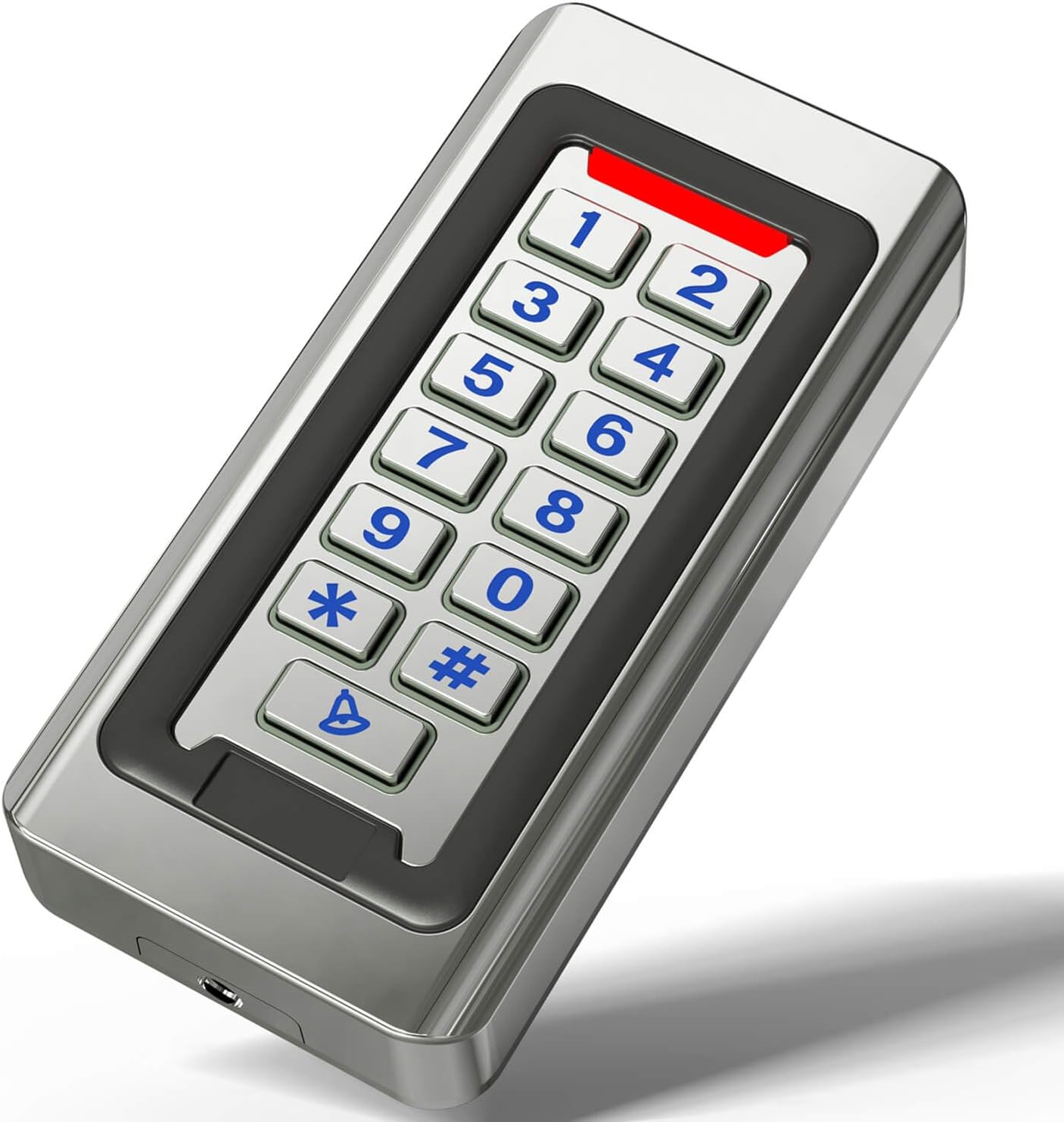

Access Control Keypad

Operating Voltage: DC 12VRFID Card/ Password Capacity: 2000Manage users by mobile phone Tuya AppCard type: 125KHz EM CardPIN Digits: 4-6 digits (except 1234)Door Relay Time: 0-99 seconds (adjustable)Waterproof: Yes, IP68 Waterproof for Outdoor UseShell Material: Metal CaseOperating Temperature: -35℃～+60℃ (-31℉-140℉)Shell Size: 118 x 56 x 20mm (4.65″ x 2.20″ x 0.79″)

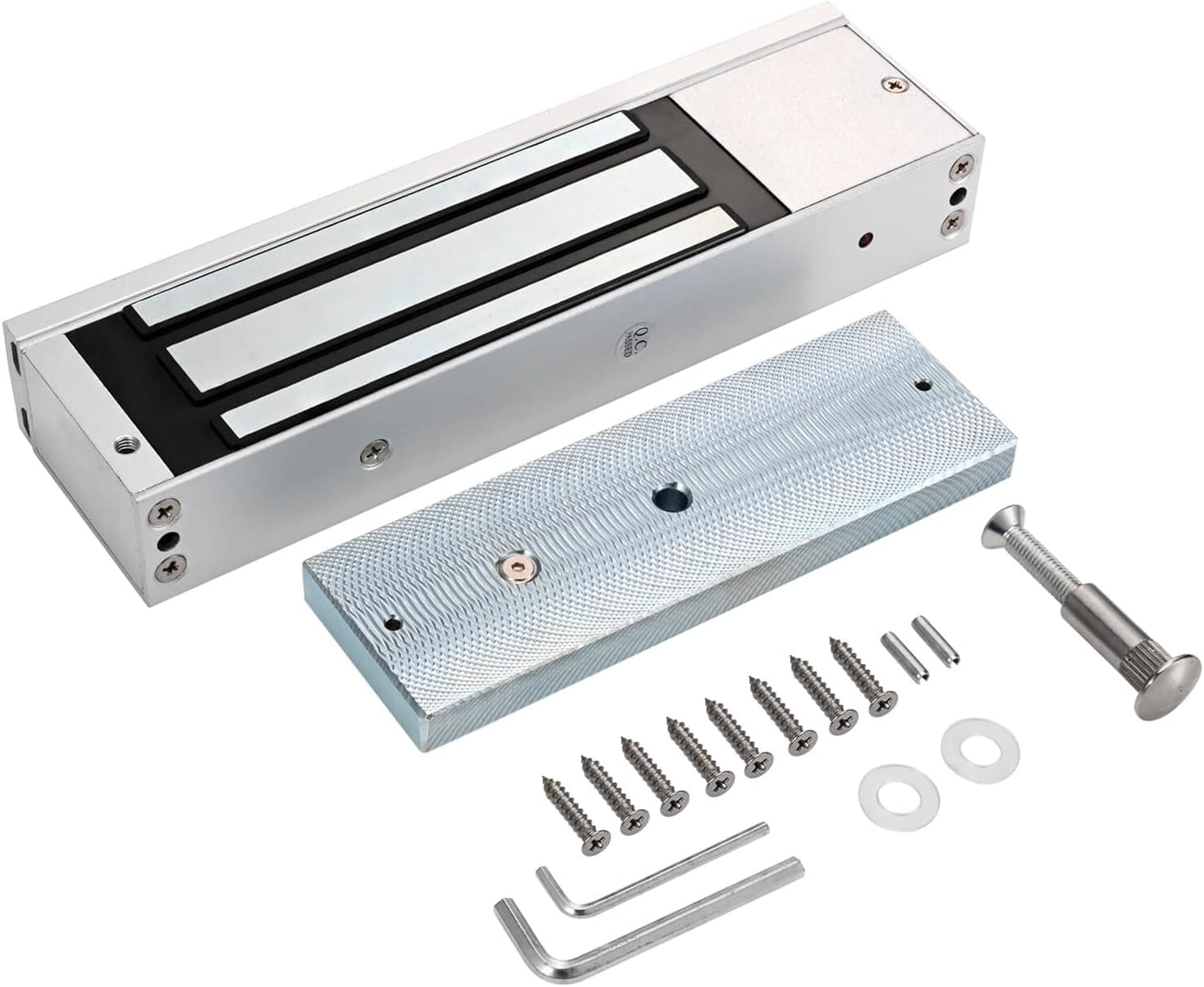

1200lbs Magnetic Lock

Cover Finish: Anodized aluminumLock Finish: ZincArmature Plate Finish: ZincInput Voltage: 12V DCHolding: 500kg / 1200LbsFail safe: Unlocked while power is removed (NC Mode)Size (L x W x H): 265 x 75 x 39 (mm) / 10.43x 2.95 x 1.54 (inch)Armature Plate Dimension (L x W x H): 185 x 60 x 13(mm) / 7.28 x 2.36 x 0.51 (inch)

Caution for Magnetic Lock

Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.If the door frame thickness is less than 2.36 inch or your need to install this lock on an inswing door, you can buy our Z and L bracket ASIN B0BJF42MDP.

Power Supply Control

Input Voltage: AC110-240V

Input Frequency: 50-60Hz

Output Voltage: 12V DC / 4A

Enclosure Material: Aluminum alloy

Enclosure Color: Black

Time Delay: 0-15s

Operating temp: -20℃~+45℃(-4℉-113℉)

Dimensions (Lx W x H): 3.54″ x 3.54″ x 1.38″

Remote Receiver

Operating Voltage: 12V DC

Operating Mode: Momentary/Toggle/ Latched/Delay mode

RF Frequency: 433MHz

DC Encoding Type: Learning code

RF Channel: One

Transmitter Support: Max 35

Output Terminals: NO/NC/COM

Remote Transmitter

Power Source: 23A 12V Battery(Included)

Number of Batteries: 1

Service Life of Battery: 50,000 cycles tested

Transmitting Frequency: 433MHz

Number of Buttons: 1

Emission Distance: 30m / 65ft (Open area)

Encoding Type: Fixed code

Enclosure Material: ABS Plastic

Push to Exit Button

Material: 304 Stainless Steel

IP68 Waterproof, can work in rain weather

Dimensions: 3.39L x 3.39D x 1.18H (inch)

Weight: 0.29KG / 0.64lb

Surface Mounted Installation with Back Box

Can also Embedded Installation

Mechanical Life: 500,000 tested

Output Contact: NO/COM/NC/COM

Operating Temp: -20℃～+55℃ (-4℉-131℉)

Doorbell Chime

Features a bell sound

No battery needed

Volume of doorbell: 90db

Working Voltage: DC12V

Dimension: 2.44(W) x 3.53(H) x 0.91(D) inch

Wire Connection: Red: + 12 V; Black: GND; Green: BELL1; Yellow: BELL2

Operating Temperature: -10℃-45℃

Material: ABS fire retardant material

Package Included

1 x Access control keypad

5 x ID cards

1 x 1200LBS electric magnetic lock

1 x Power supply control

2 x Remote Transmitters

1 x Remote Receiver

1 x Push to Exit button

1 x Power Cord

1 x English user manual

Diagram

All-in-One Access Control Kit – Includes a waterproof keypad access control keypad, 1200lb electromagnetic lock, remote controls, power supply, exit button, doorbell, and a power cord for easy setup.
Multiple Unlock Methods – Unlock via RFID ID card, PIN code, TuyaSmart App (remote unlock & user management), or remote controls. Store up to 2000 users – perfect for homes, offices, apartments, and small businesses.
Heavy-Duty Waterproof Electromagnetic Lock – Features a powerful 1200lb holding force magnetic lock to ensure high-security locking.
Exit Button with Dual Mounting – Waterproof stainless steel push-to-exit button supports surface and flush mounting, suitable for both indoor and outdoor environments.
Doorbell Functionality – When visitors press the Bell button on the keypad, a clear “Ding-Dong” sound notifies indoors – improving convenience and communication.
