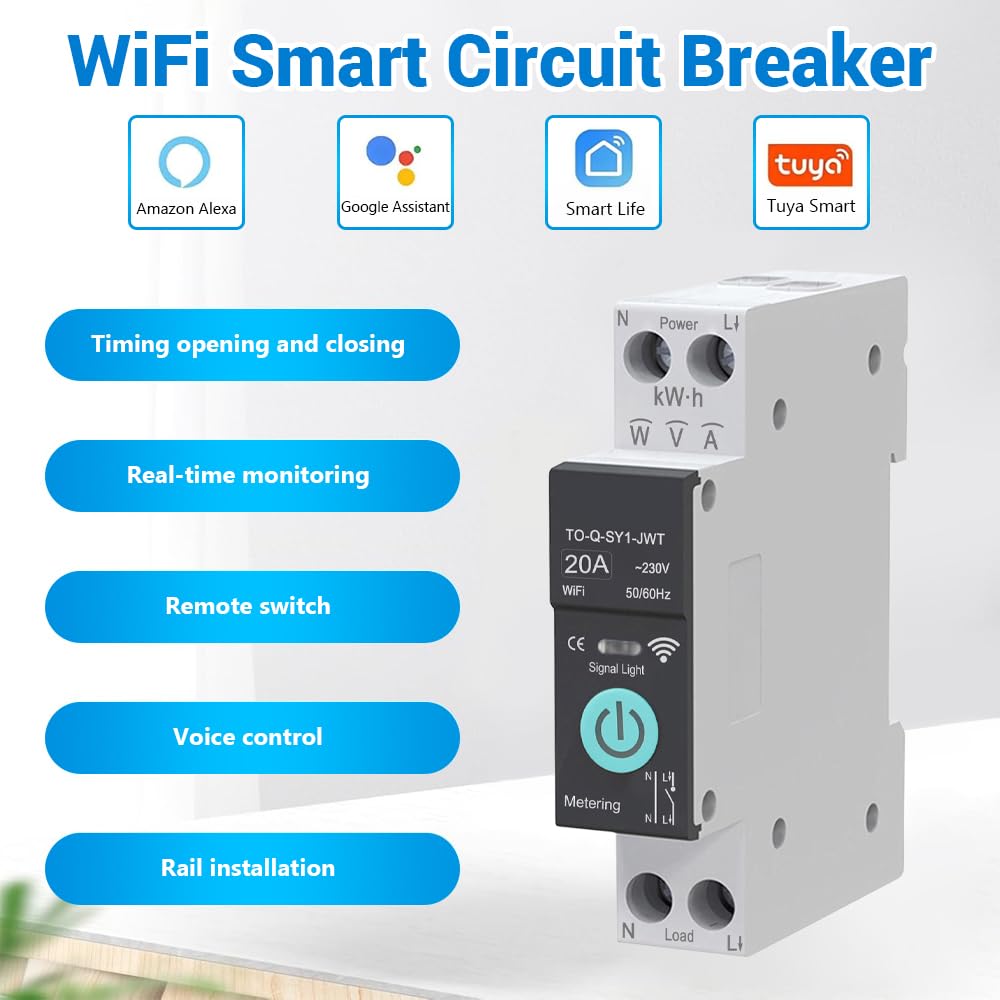

WiFi Circuit Breaker, 1P+N 20A 230V Smart Home Wireless Remote Control Switch Timer Voice Control Energy Monitor Compatible with Smart Life TUYA APP DIN Rail Mounted

Product description

1. Connect the wires correctly.

2. Turn on your phone’s Bluetooth and Wi-Fi, open the app, and then press and hold the “Power” button for about 5-10 seconds. The LED indicator will slowly flash blue.

3. After the graphic appears, wait a moment, then tap the “+” icon in the upper right corner, and select the “Add Device” button. Wait for the device to be discovered, then tap the “Add” button.

4. Enter your Wi-Fi username and password, then tap Next and wait for the switch to connect to the network.

5. The switch is now connected to the network.

6. After a successful connection, the LED indicator will change from a slow red flash to a solid red light.

Connection Protocol Type Only for Wi-Fi IEEE 802.11 b/g/n 2.4GHz Relay Type Latching relay type Rated Operating Voltage AC 90-240V, 50/ 60Hz (work with AC loads no DC loads) Rated Operating Current 6/ 10A/ 16A/ 20A/ 25A/ 32A/ 40A/ 50A/ 63A Poles Description 1P+N (N pole cannot be cut off) Circuit Type Single-phase Current Scenario AC1, AC electricity positive import Mounting Type 35mm DIN rail Shell Material Nylon PA66 Certification & Standard FCC, CE & IEC 60947 standard (without any protection such as overcurrent or leakage) Operation Type Mechanical control, remote control via “Smart Life” and “Tuya” APP Mobile Phone Support System Android/ iOS

Smart DIN Rail Control for Everyday Loads: Designed for AC 90–240V systems, this 1P+N WiFi circuit breaker is suitable for AC1 applications such as heaters, table lamps, ovens, and other resistive loads. It is a switch without any protection such as overcurrent or leakage!
Upgrade Ordinary Appliances to Smart in Minutes: This compact DIN rail–mounted switch makes it easy to turn traditional appliances into smart devices within about 10 minutes. Ideal for DIY home upgrades, it simplifies automation without rewiring entire systems or replacing existing equipment.
App-Based Remote Control from Anywhere: Works seamlessly with the Smart Life and Tuya APPs, allowing you to turn connected devices on or off anytime and anywhere. No distance or time limits—manage your appliances whether you’re at home, at work, or on the road.
Real-Time Energy Monitoring & Usage Records: Tracks load current, voltage, power, and real-time energy use, while automatically recording consumption data by hour, day, month, and year. This helps users understand usage patterns and manage electricity more efficiently.
Voice Control Functions: Compatible with Amazon Alexa and Google Assistant for hands-free voice commands. Supports schedules, countdowns, cycle timing, and sunrise/sunset automation, helping reduce forgotten power usage and better coordinate daily appliance operation.
