YuanLey 8-Port 10G Ethernet Switch, 8 x 10Gbps RJ45 Ports, Support 10G/5G/2.5G/1G/100Mbps Speed Auto-Negotiation, 160Gbps Switching Capacity, Unmanaged Switch Rackmountable, Plug and Play

Product description

Product Specifications

Product Name 8-Port Full 10G Ethernet Switch Ethernet 8* 10G Ethernet ports Switching Capacity 160Gbps Packet Forwarding Rate 119.04Mpps Forwarding Mechanism Store-and-Forward Mac Address Table 16K Memory Cache 12MBit Flash Memory 16MByte Network Protocol IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x/802.3cb Network Medium 100Base-Tx: UTP/STP of Cat. 5 or above (≤100 m) 1000Base-T: UTP/STP of Cat. 5e or above (≤ 100m) 2.5GBase-T:UTP/STP of Cat. 5e or above (≤ 100m) 5GBase-T: UTP/STP of Cat. 5e or above (≤ 100m) 10GBase-T: UTP of Cat 6 (≤ 55 m) or STP of Cat 6a (≤ 100m） Working environment Working temperature: 0~45° C Storage temperature: – 40~70 ° C Working humidity: 10%~90%, non condensing Storage humidity: 5%~95%, non condensing LED Indicators PWR (Power light) On: Powered on, Off: Powered off. Port LED light (green) On: 10G link, Off: Link not working Port LED (yellow) On: link connection is normal, Flashing: Data transmission, Off: Link not working Product Size 34.5*26.2*8.7cm Supply Voltage AC 100-240V 50/60Hz Packing list 1 10g switch, 1 user manual, 1 power cord, 1 pair of rack ear

✅【8 Port 5Gbps Ethernet Switch】Equipped with 8 x 5Gbps RJ45 Ethernet ports for fast multi-gigabit connectivity. Each port supports auto-adaptive 5G/2.5G/1G/100Mbps, providing high bandwidth for NAS, servers, WiFi 6 APs, and more.
✅【80Gbps Switching Capacity】With up to 80Gbps switching capacity, this network switch delivers up to 5× faster performance than traditional Gigabit switches, ensuring smooth and stable data transmission even under heavy traffic.
✅【Unmanaged Plug & Play】No configuration required — simply plug in the power cable and connect your devices. This unmanaged 5G Ethernet switch is easy to set up and use right out of the box.
✅【Stable and Quiet】Durable metal housing with 4KV lightning protection, ultra-quiet 24dB cooling fan, and dual-sided cooling vents ensures stable operation in a wide temperature range of 0~45 °C. LED indicators make network status monitoring simple.

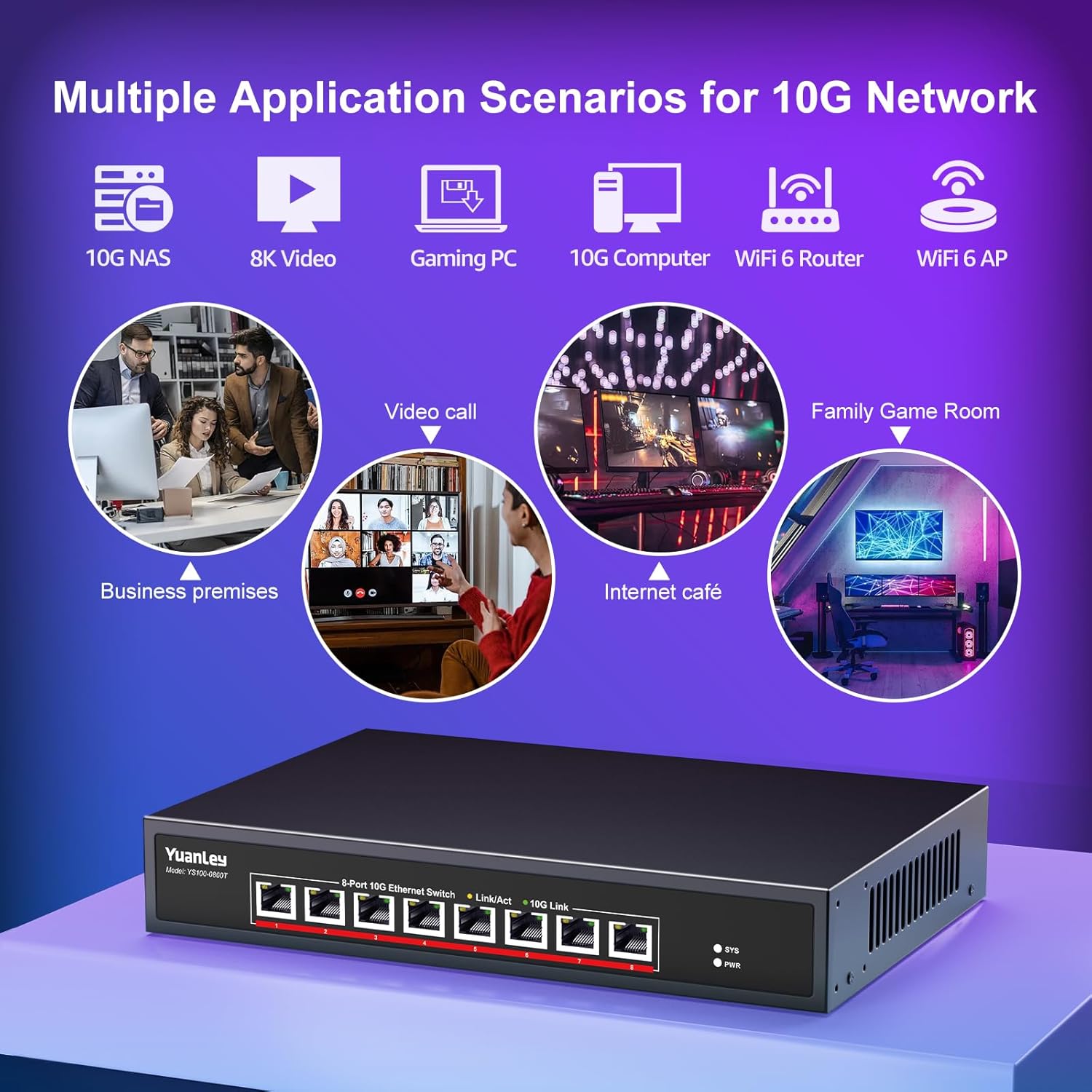

✅【Flexible Installation & Wide Use】Supports 19-inch rackmount and desktop installation. Perfect for 2.5G/5G NAS, servers, WiFi 6 access points, PCIe network adapters, 8K video streaming, gaming PCs, and more.
✅【Network Protocol Support】Supports IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x. 100Base-TX: Cat5 or higher UTP (≤100 m); 1000Base-TX/2.5GBase-TX/5GBase-TX: Cat5e or higher UTP (≤100 m)
