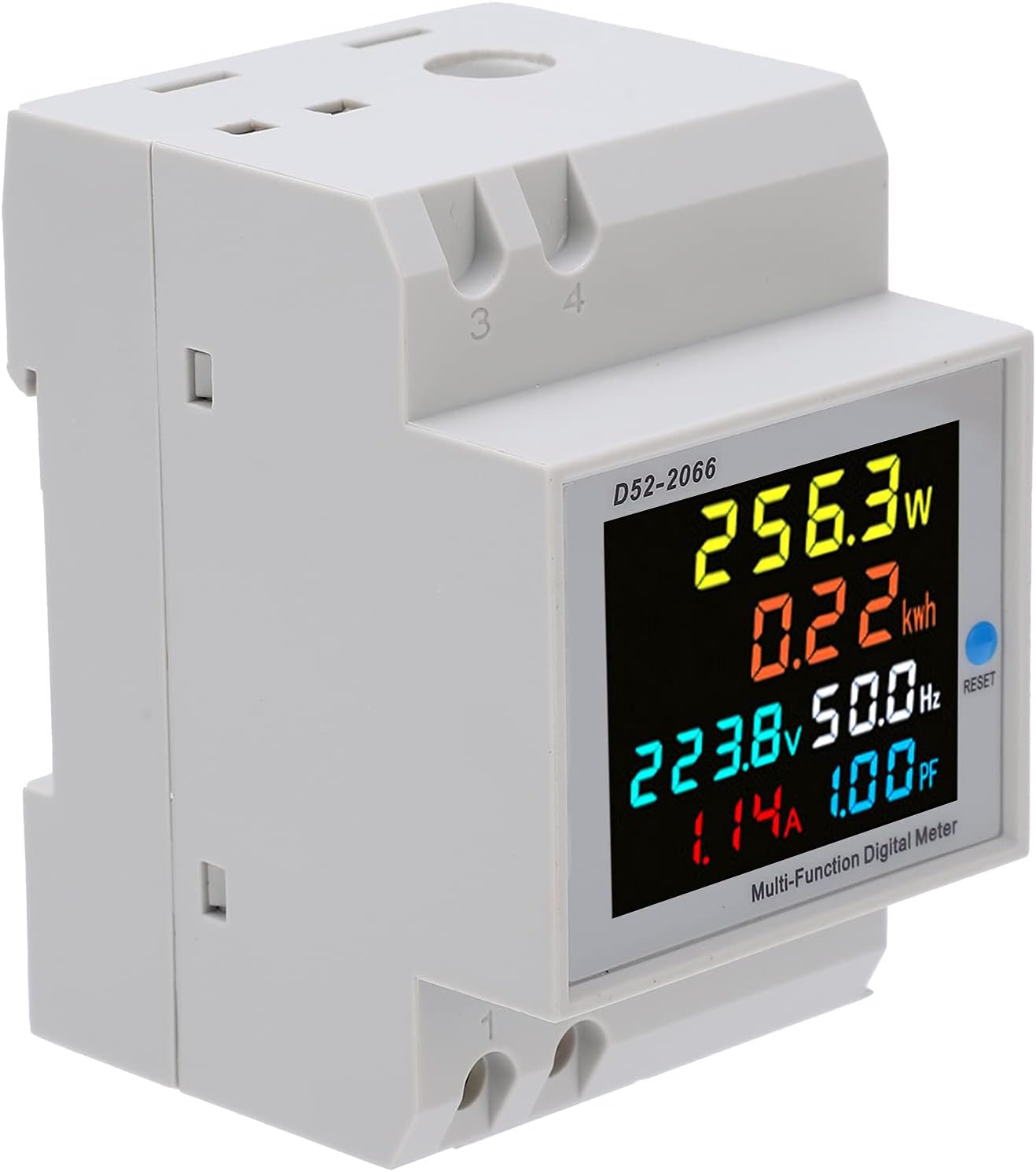

Zerodis D52 2066 Smart Single Phase Energy Meter 220V Rail Type Watt Hour Meter with Multi Parameter LCD Display for Home and Industrial Monitoring

[Multi-Parameter Monitoring] Displays voltage current active power power factor frequency total energy on a colorful LCD screen for enhanced understanding.
[Wide Measurement Range] Measures AC voltage from 40 to 300V and current up to 100A with 1% accuracy for versatile monitoring of residential or light industrial loads.
[Convenient Installation] Compact rail-type design ensures easy mounting on DIN rails in electrical panels or automation systems for a seamless setup.
[Real-Time Data Tracking] Ideal for monitoring home energy usage or optimizing industrial equipment in power plants and automation setups.
[Durable Construction] Made of ABS material this energy meter offers Durability-Optimized with measurement updates every 0.5 seconds ensuring long-term reliability.
Item Type: Watt‑Hour Meter
Model: D52-2066
Material: ABS
Uses: used in chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment and other places
Measurement Accuracy: 1%±2 Words
Measuring Range: AC Voltage: AC40.0-300.0V, AC Current: AC0-100.0A
Current Display Resolution: 0.01A
Power Frequency: 45.0Hz-65.0Hz
Power Factor: 0.00-1.00PF
Active Power: the measurement range is 0-30000W, the display resolution between 0-9999.9W is 0.1W, and the rest is 1W
Electricity:
0-9999kwh, 0-999.99kwh, the minimum display resolution is 0.01kwh
1000.0-9999.9kwh, the minimum display resolution is 0.1kwh
10000-9999kwh, the minimum resolution is 1kwh
Measurement Speed: about 2 times per second
Installation Method: Rail Type
How to Use:
1. Connect the measured voltage to the 1 and 2 terminals on the bottom left of the meter.
2. The built‑in transformer is wired according to the wiring diagram in Figure 1, and the wire of the measurement loop is passed through the hole under the meter. The penetration direction of the wire is arbitrarily selected by the user according to the situation of use. Or penetrate from
